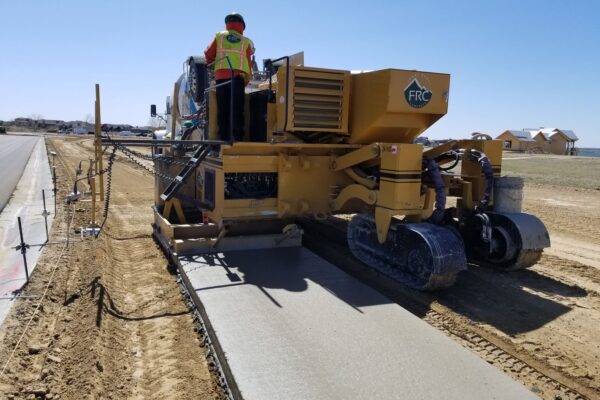

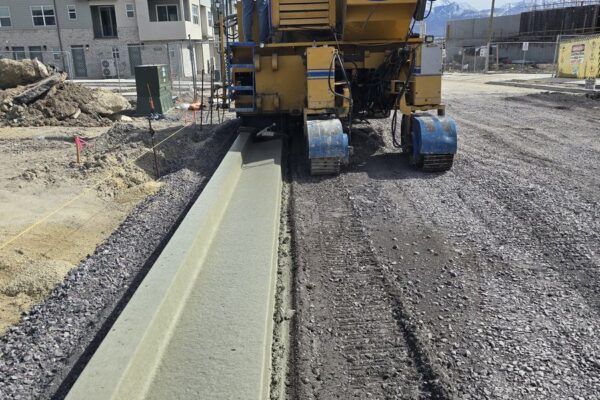

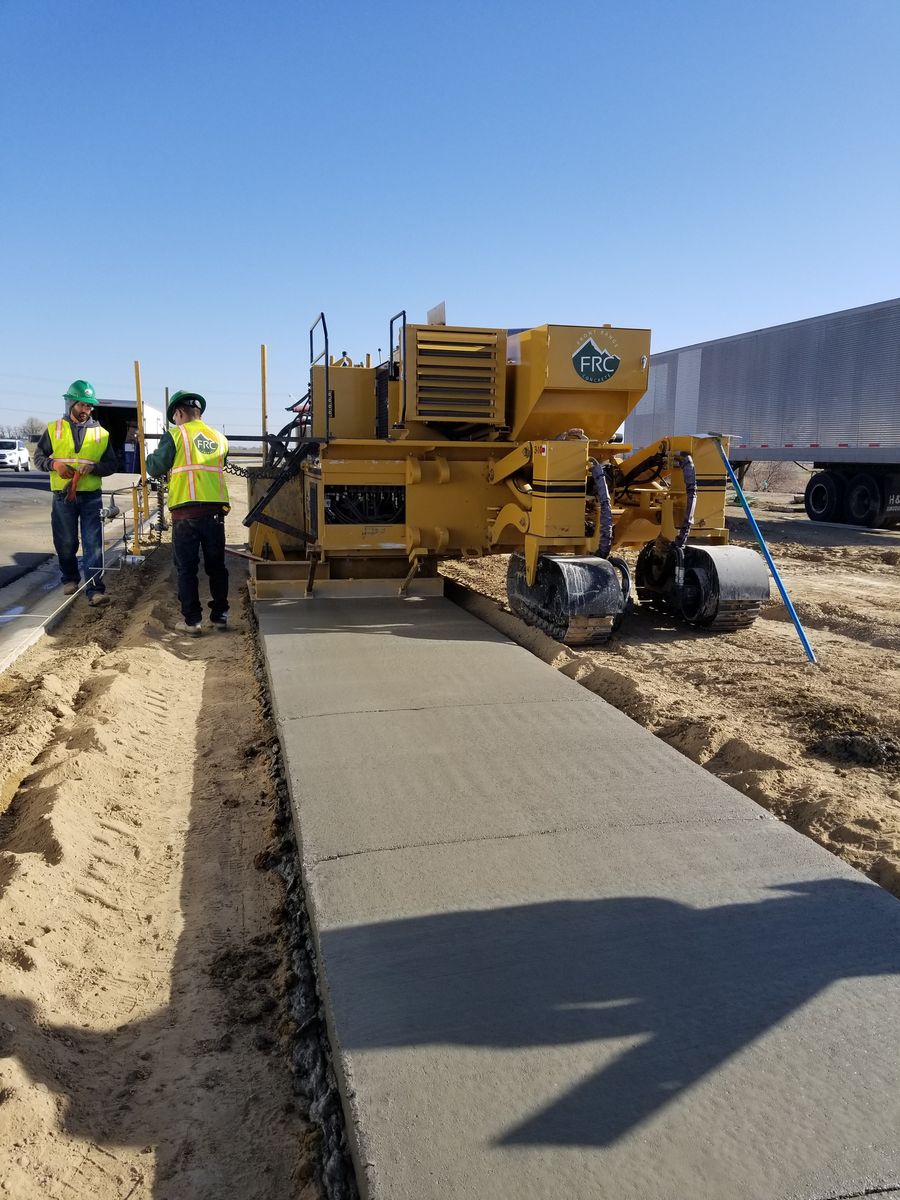

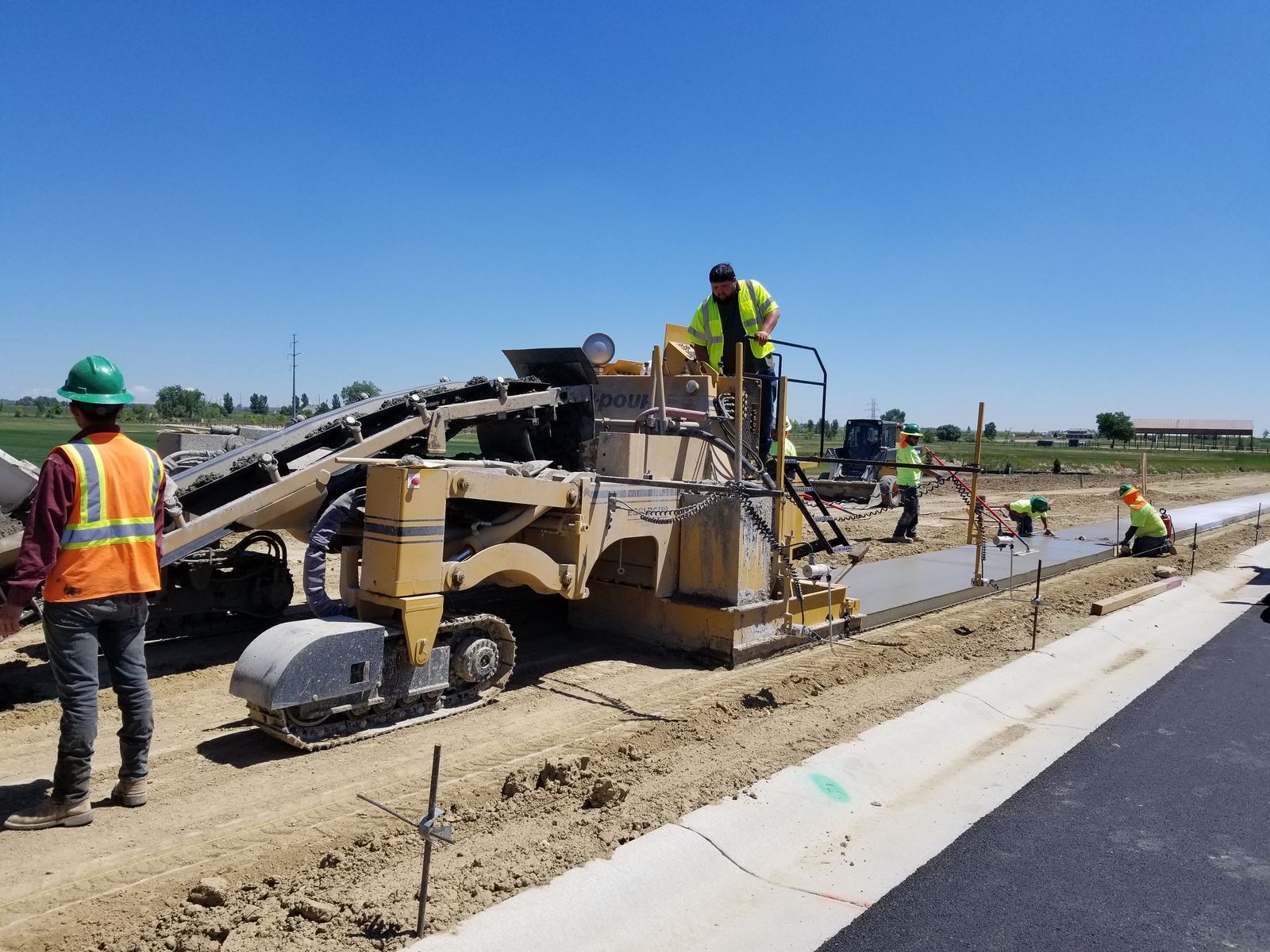

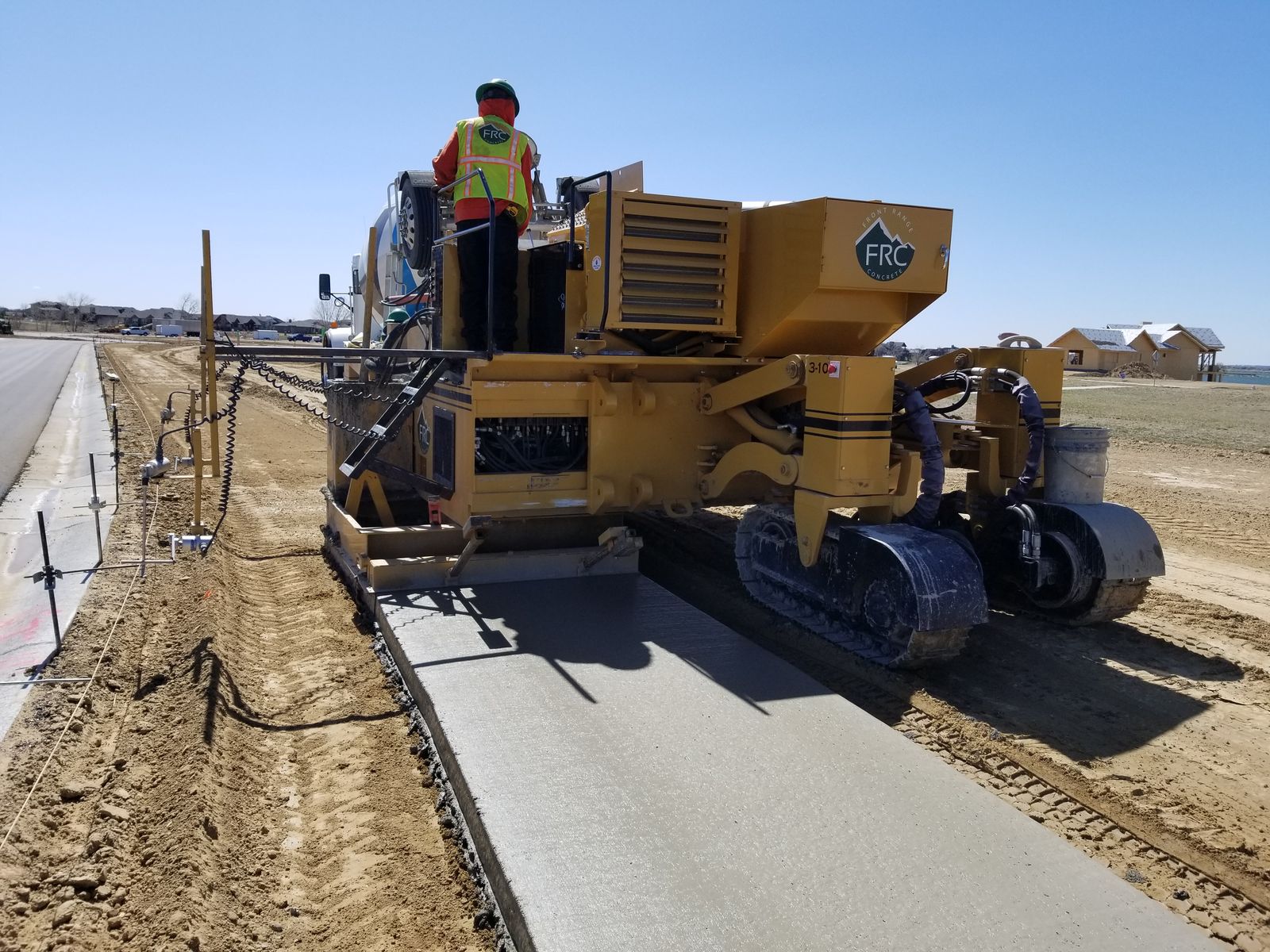

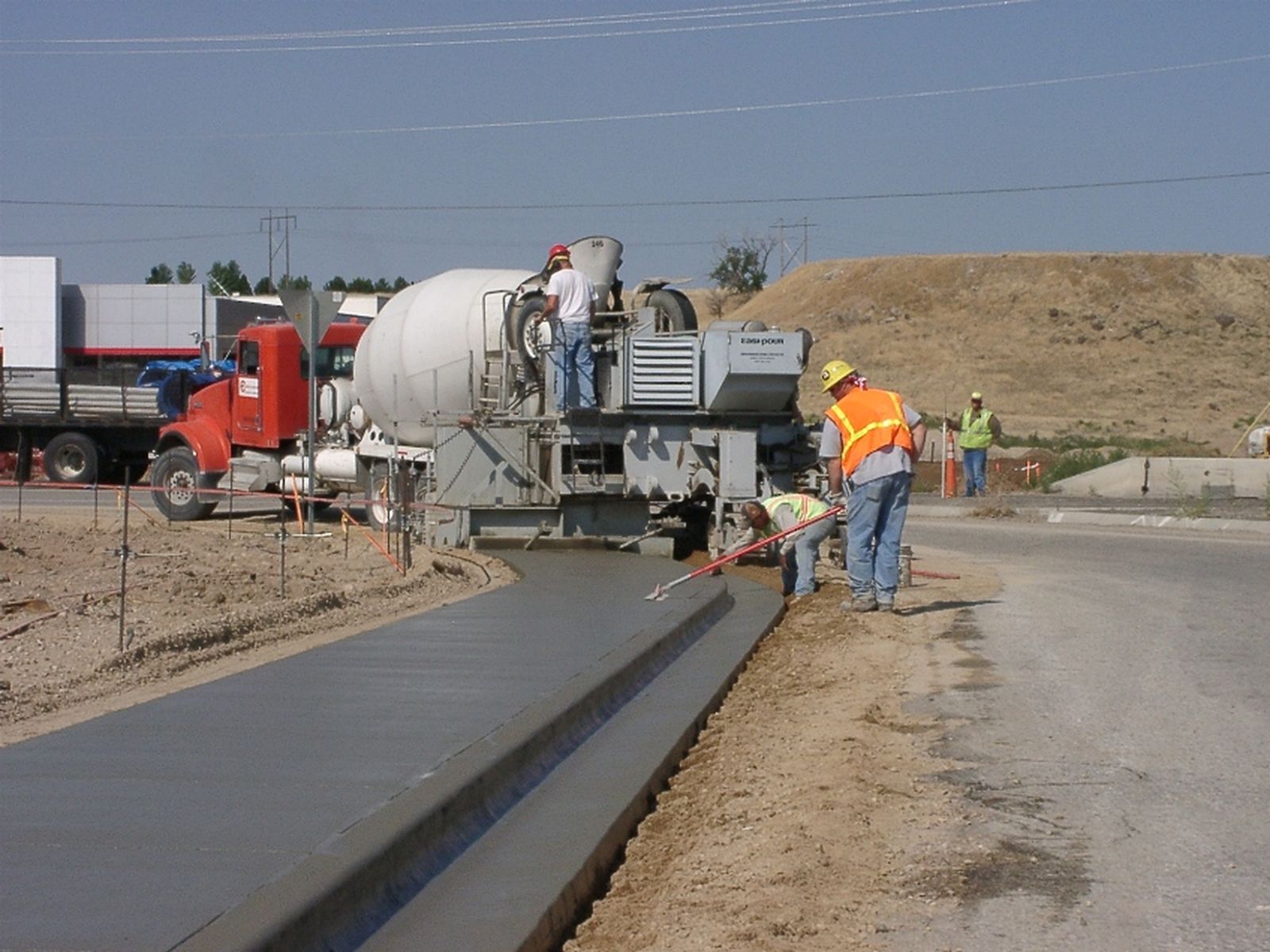

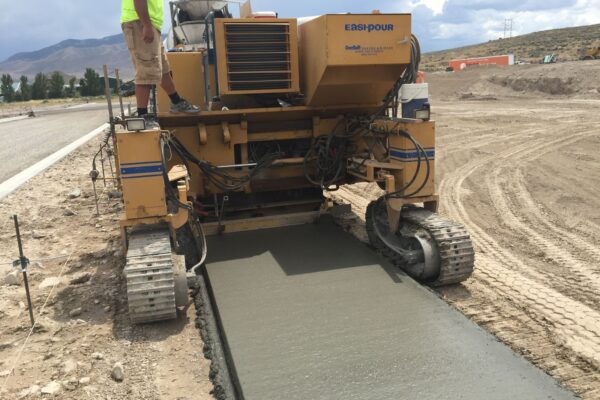

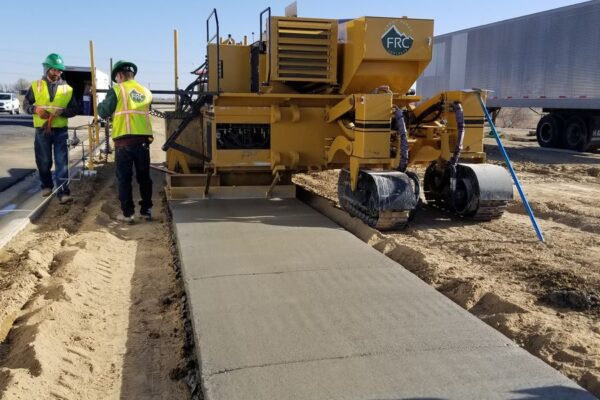

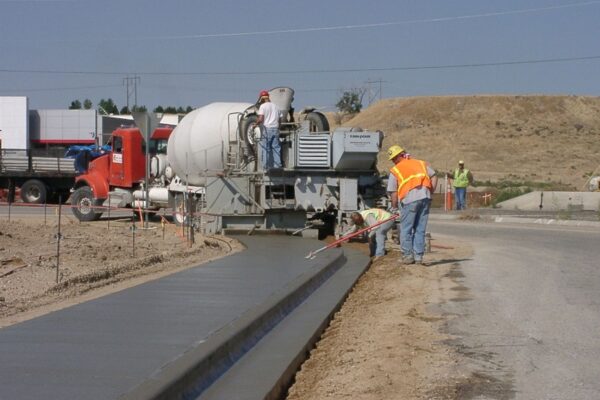

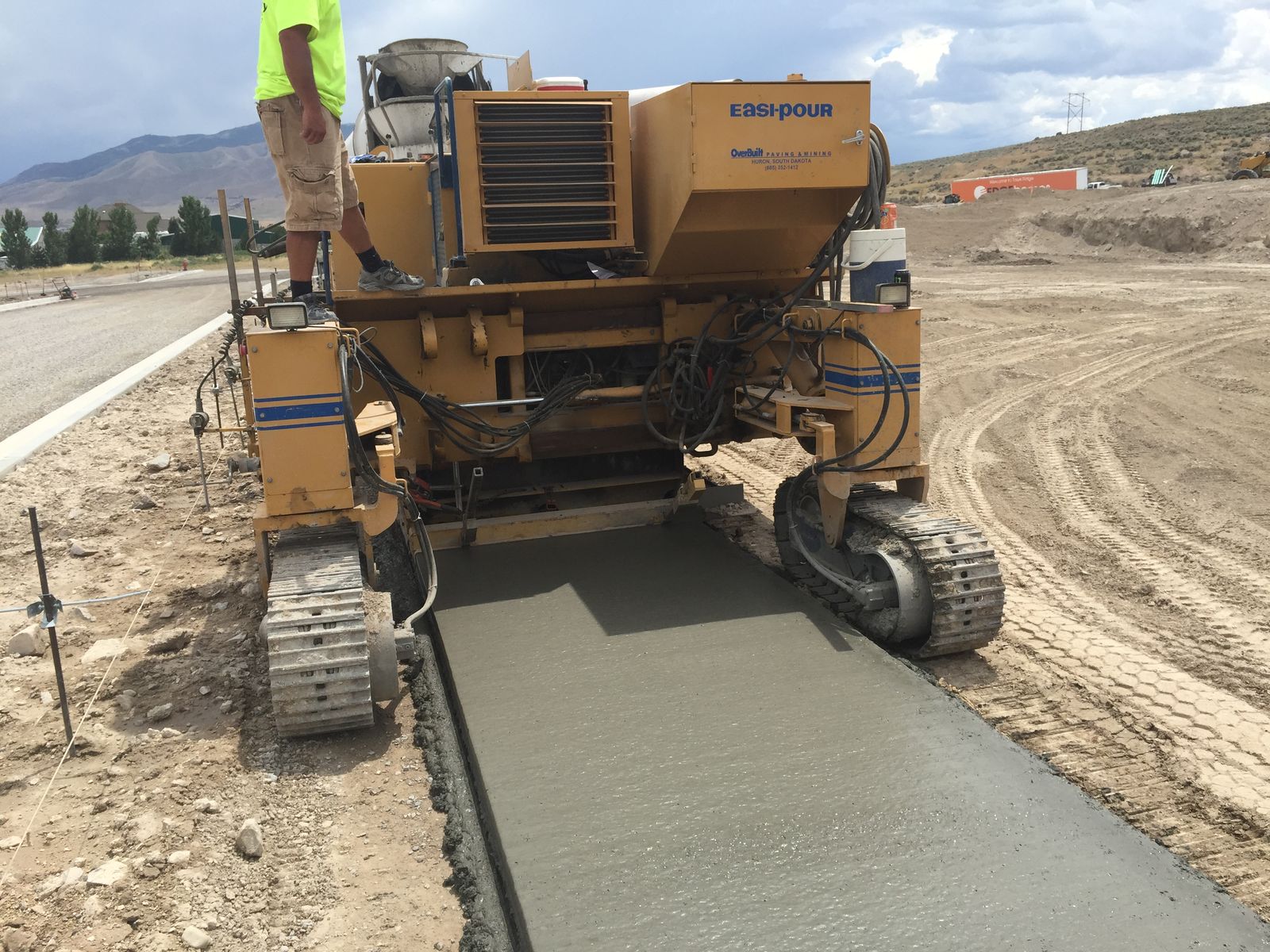

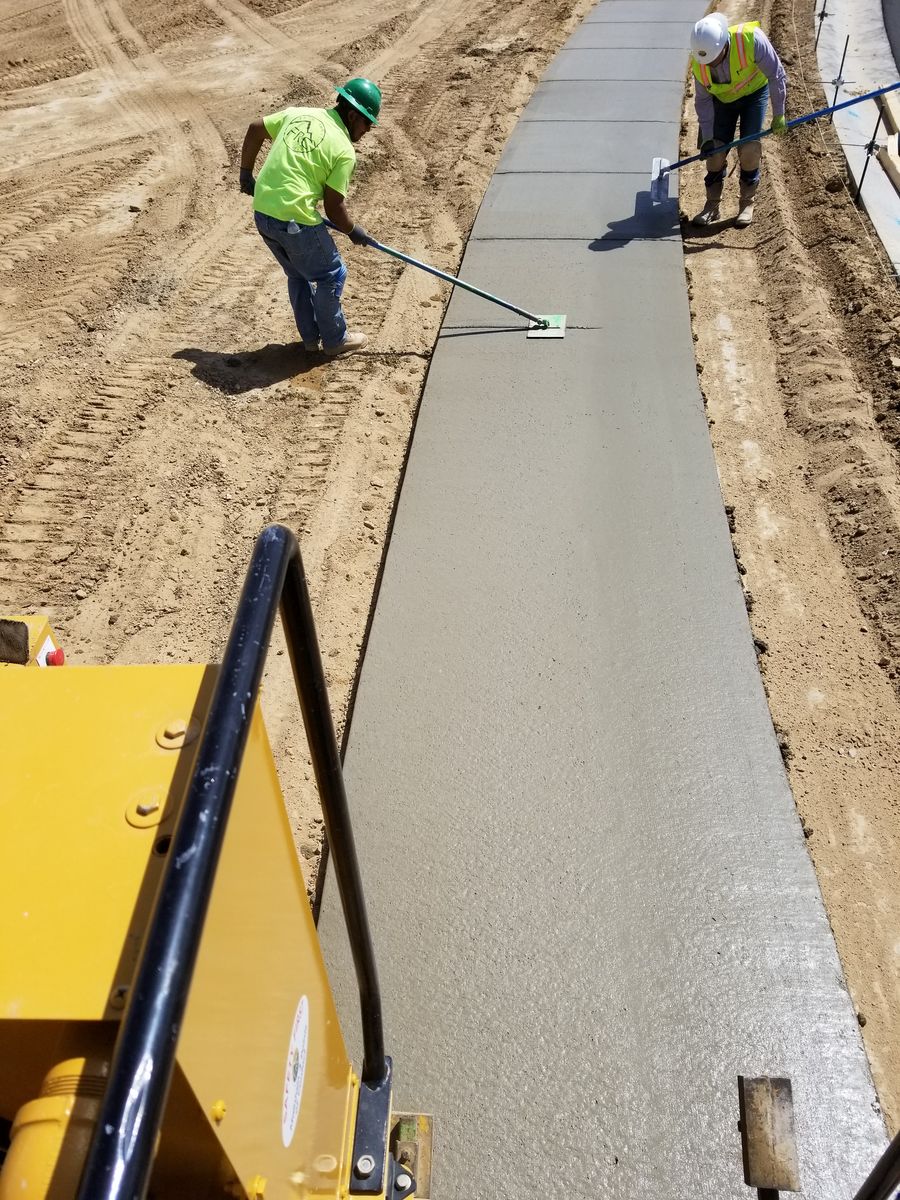

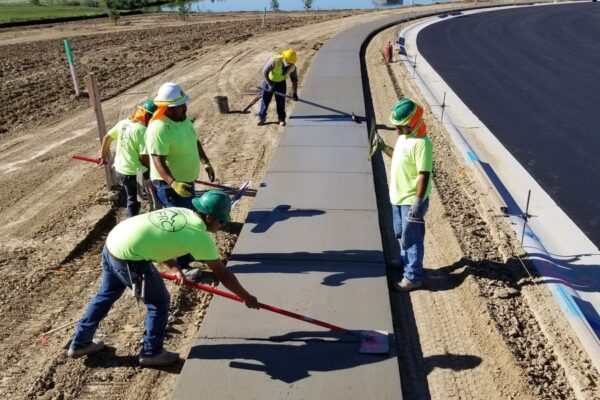

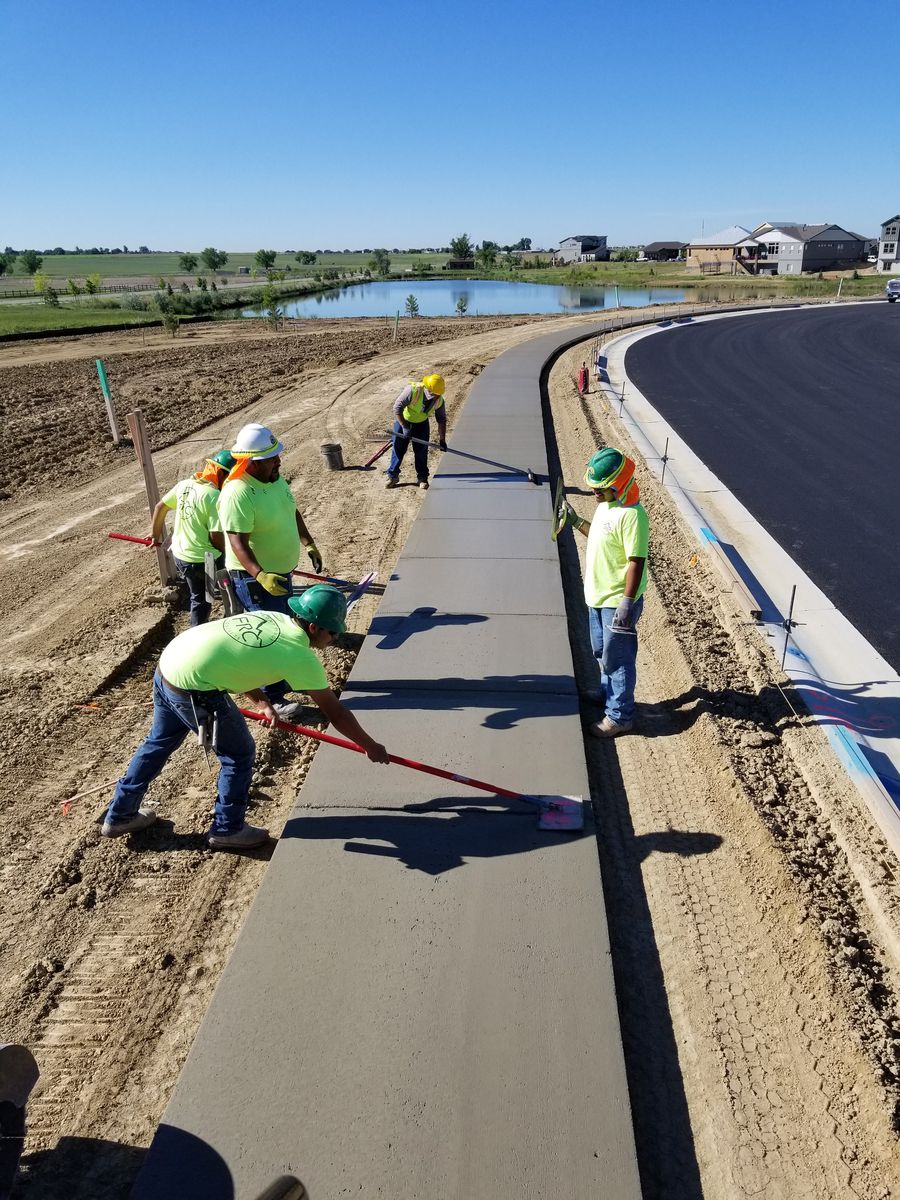

The 1000 is available in a four-track configuration. Applications of the 1000 are curb & gutter profiles, sidewalk & rec-trails, valley gutters, safety barriers, bridge parapet and monolithic profiles. The 1000 can also be fitted with a monolithic trimmer for paving monolithic profiles of gutter, curb, and sidewalk in one pass. Simultaneous trimming and pouring with the 1000 makes concrete placement more efficient.

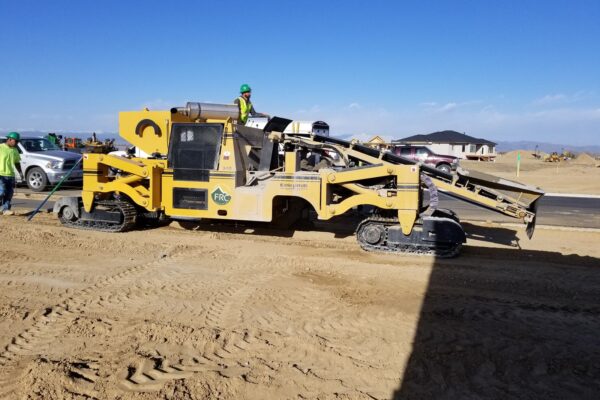

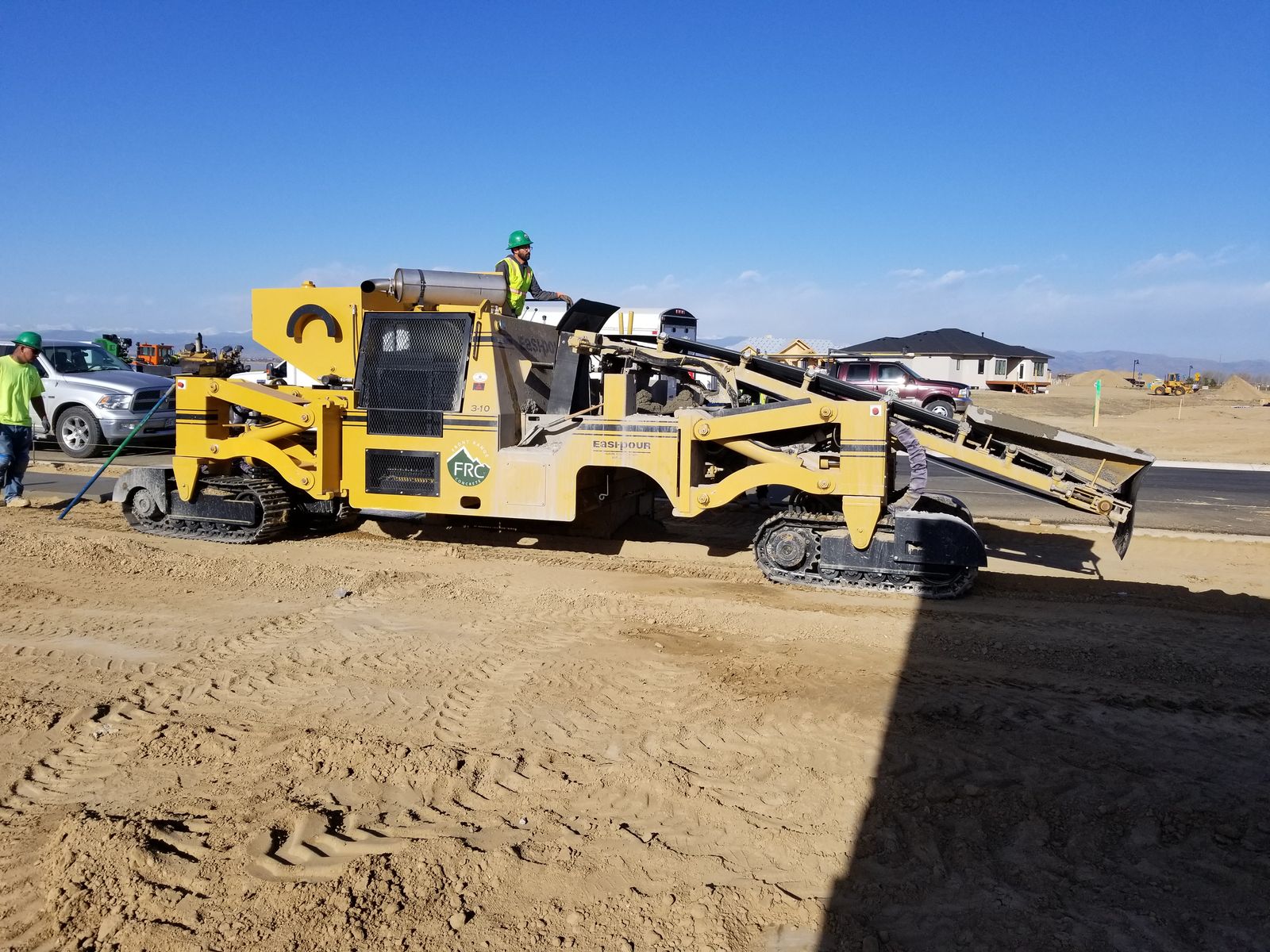

The 1000 has 4 sliding legs for a multitude of leg setup possibilities, external oil cooler for added hydraulic oil system protection, 8 vibrator circuits with independent controls for wide paving, a 14’ (4.3 m) hydraulic variable speed conveyor with swing and lift cylinders, and a 51” (1.3 m) direct drive trimmer with hydraulic side shifting and vertical lift cylinders.
The 1000 is delivered with everything you need for the job including Easi-Pour manufactured sensors, cords, steering & elevation wands, 4 vibrators, and a mold built to customer specifications to create a hassle-free buying experience. String line packages are also available upon request.
Easi-Pour offers state-of-art technology in our iSlip Control System. An intelligent slipform technology with real time remote access capability for your paving application. iSlip Controls give you peace of mind while creating more accurate concrete placement, better yield, and increased production.
Features
- John Deere 185 HP Tier IV Diesel Engine
- iSlip Control Platform Including Remote Access and 3D/Stringless Capabilities
- Direct Drive Hopper Auger
- 2 Speed Planetaries w/Electronic Shift – Fastest Transport and Pour Speeds in the Industry
- 51” (1.3m) Direct Drive Side Shifting Trimmer
- External Hydraulic Oil Cooler w/Return Filters
- Hydraulic Sliding Hopper Pan
- 4 Post Sliding Legs
- Track Safety Covers; 4-Leg Emergency Stop

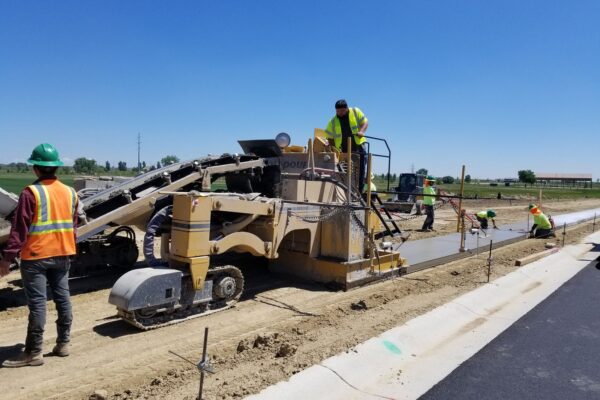

- 14’ x 20” Standard Belt Conveyor
- 1 Standard Mold (up to 48” wide)
- All Sensor Cords, Sensors & Stringline Wands
- Dual Vibrator Module for 8 Vibrator Circuits
- 4 Vibrators
Optional Features & Accessories
- 3D GPS Package Includes: Masts, Harness & Controller Configuration for Stringless CAN Communication
- 130 Gallon Water System
- High Pressure – 1250 psi pressure washer
- Low Pressure – 60 psi high volume
- Dual Pressure System – High & Low Pressure Pumps
- Engine Air Compressor (Includes Air Tool Chuck)
- Air Horn ( Requires Air Compressor)
- Light Package
- Extended Conveyor Hopper
- Rubber Track Pads
Optional
- 4 Track or 4 Wheel Configurations
Optional Water Systems
- Air Pressurized High Volume System – Includes: Air Compressor, Tool Chuck, Hose and Wand
- Hydraulic Driven High Pressure System – Includes: Pressure Pump, Hose, and Wand
- Dual High/Low Pressure Water System (Includes: pressure pump, hose and wand for high pressure, and low pressure high volume hose)
Fine Trim Options
- Grade Trimmer Can Be Built Up To A Maximum Width of 10′ (3 m)
- Monolithic Trimmer with Dual Internal Direct Drive Motors – Profiled to Customer’s Specifications with Variations Up To 10′ (3 m)
Additional
- Air Compressor – Provides Air Port for Additional Tools On The Job Site
- Suction Screens and Return Hydraulic Filters
- Foam Filled Tires (Wheel Configuration Only)
- Track Poly Pads – Recommended for Running on Asphalt or Other Sensitive Surfaces (Track Configuration Only)
- Sliding Front Steering Cylinder – Recommended for Running 12” (305mm) or Less From String Line – Designed for Pouring Cul-de-Sac.
- Extended Conveyor Hopper
- 2 Auxiliary Hydraulic Connectors and 2 Additional Sensor Connection Points
- Sliding Hopper Pan – Hydraulically Opens and Closes Hopper
- Anti-Theft Package – Provides Strategic Lockouts and Compartment Covers to Deter Theft
- Custom Paint – Paint Your 1000 to Match the Rest of Your Equipment Fleet
Mold Options

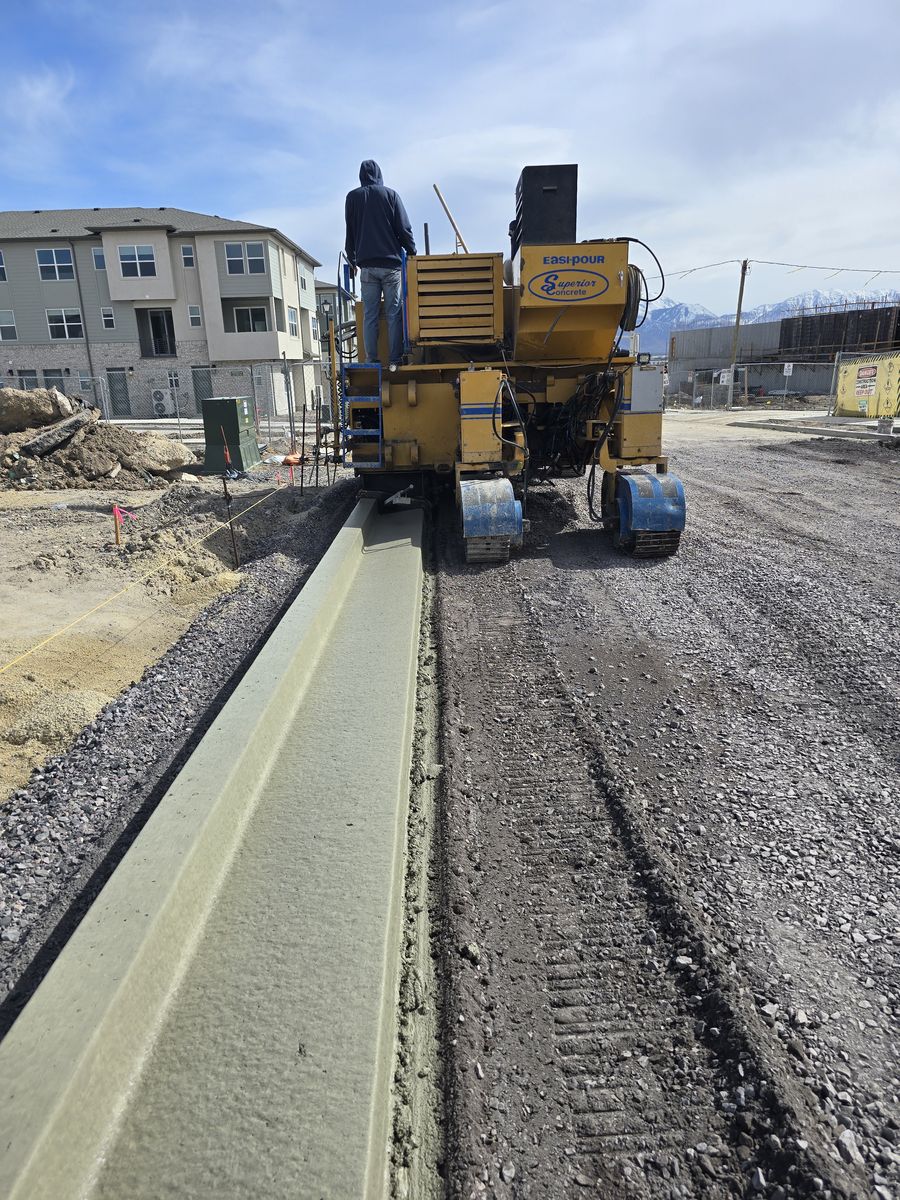

- Standard Curb and Gutter
- Standard Curb and Gutter with Hydraulic Driveway Blockout

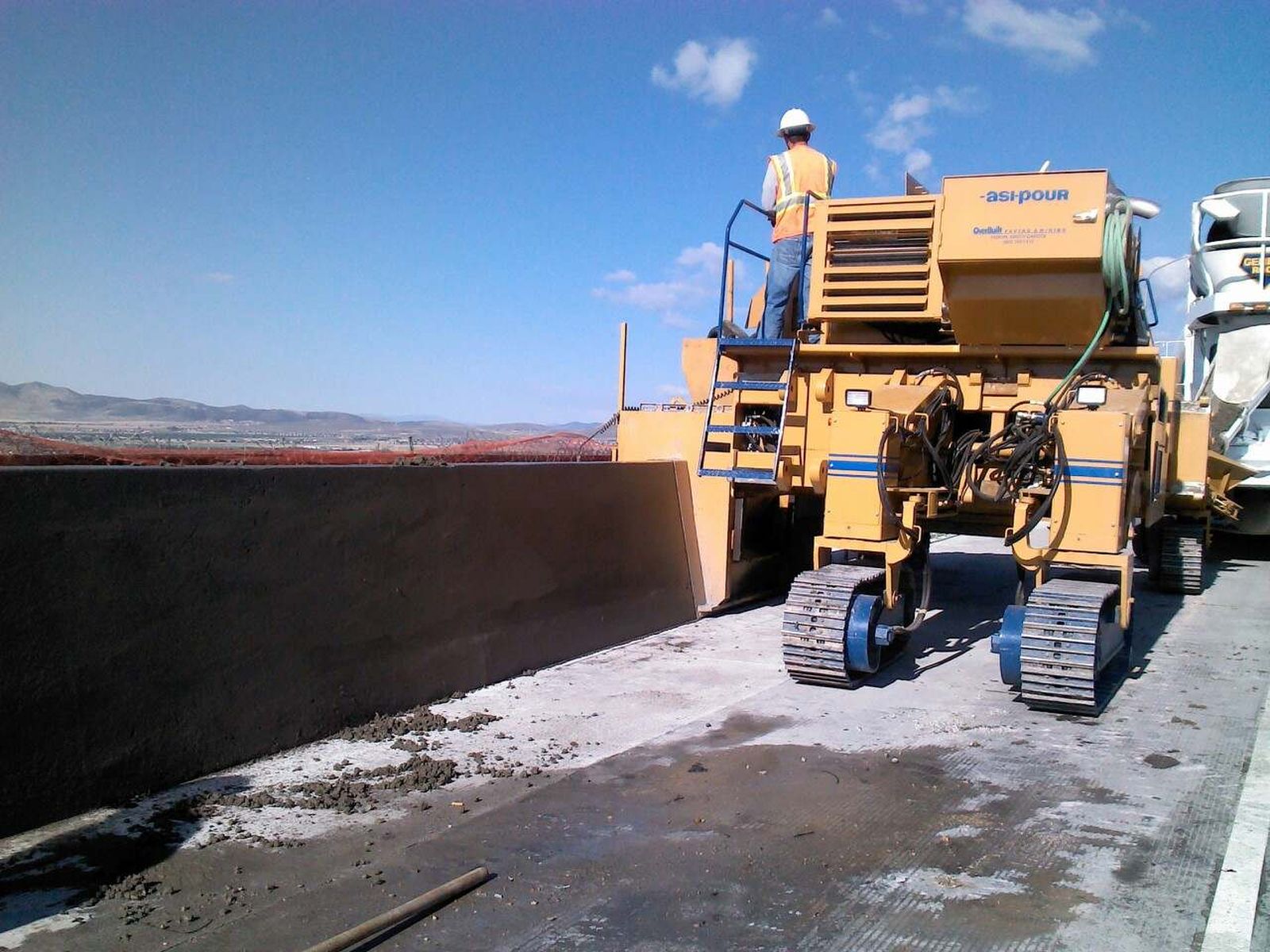

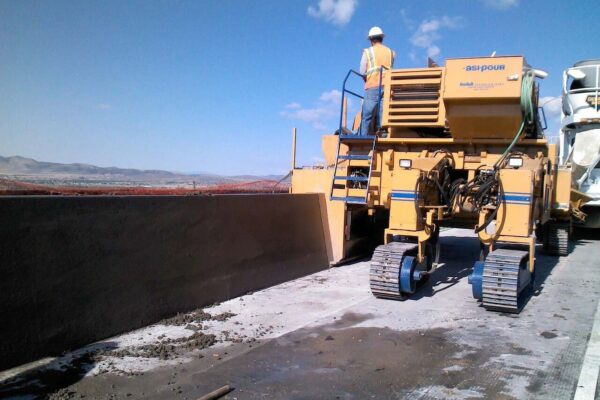

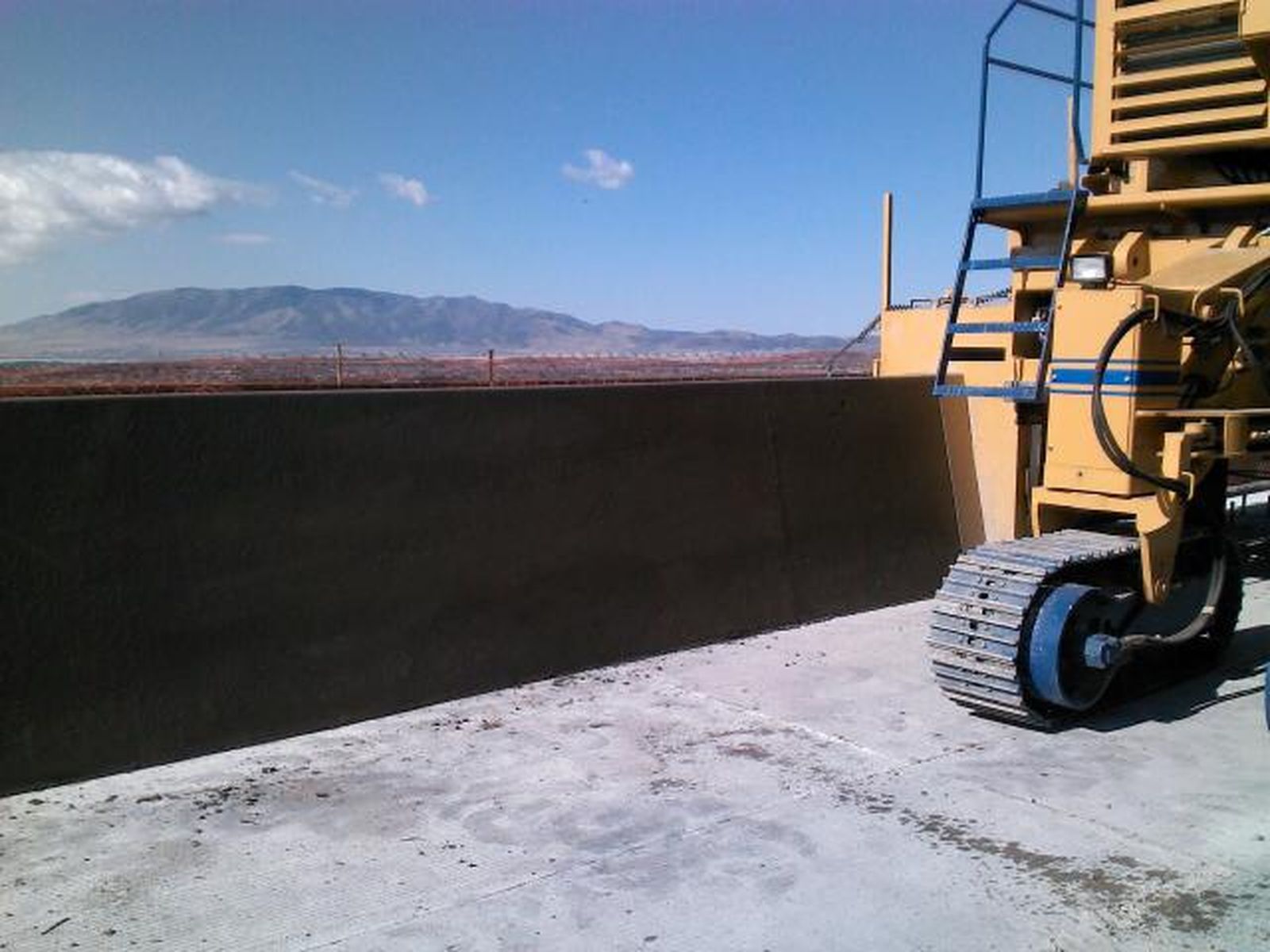

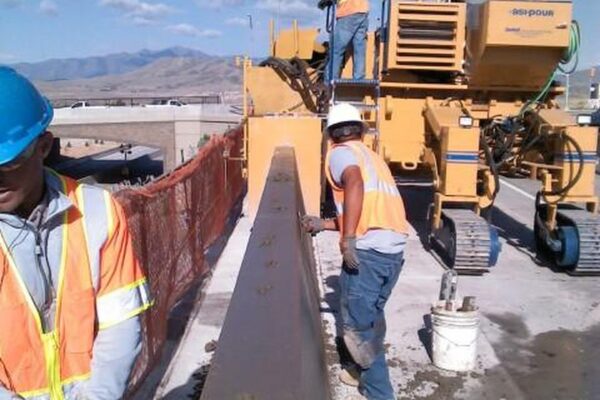

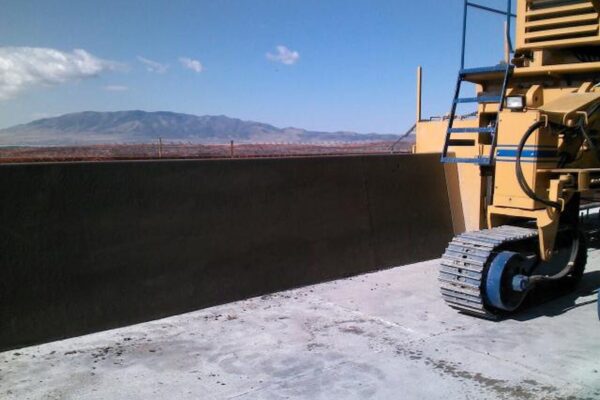

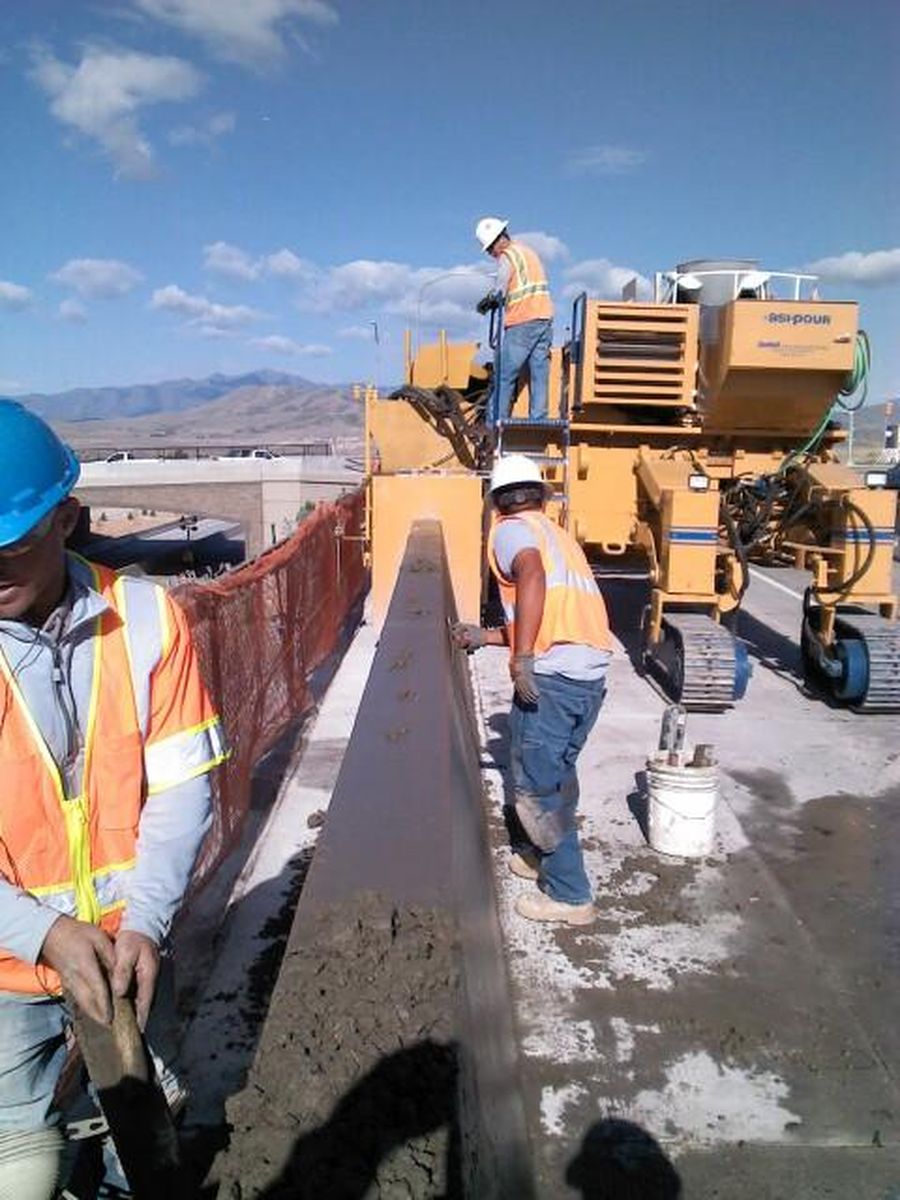

- Bridge Parapet or Highway Barrier and Barrier Walls up to 42″(1m)High
- Side Mount or Center Mount Configurations
- Sidewalk or Flat Paving Mold Options Up To 10’ (3 m) Wide (Consult Factory For Wider Paving Option)
Engine Options
- John Deere 6068HFC08 185 HP Final Tier 4
Charge Hopper
- 2 Cubic Yard Capacity Hopper (1.53 Cubic Meters)
Track Size
- Tracks: Length – 61.5″ (1.56m) Width – 12″ (305mm)
Fuel & Oil Capacity
- Fuel Tank: 70 gallon (265 liters)
- Oil Reservoir: 110 gallons (416 liters)
Dimensions
- Length: 27’ 6” (8m) includes conveyor
- Height: 8’ (2.4m)
- Width: 8’ 6” (2.5m) transport width
Weight
- Track Machine: 29,500 lbs (13,380 kg)
