Easi-Pour 1000

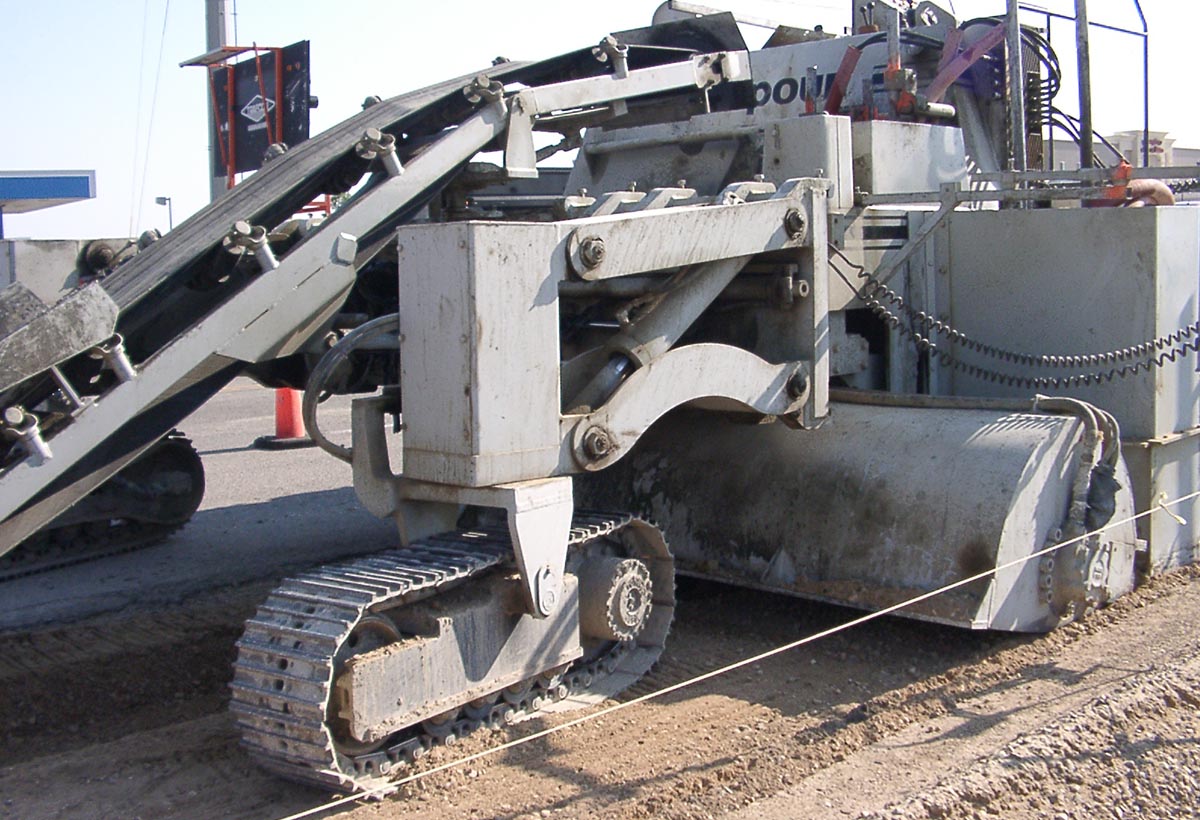

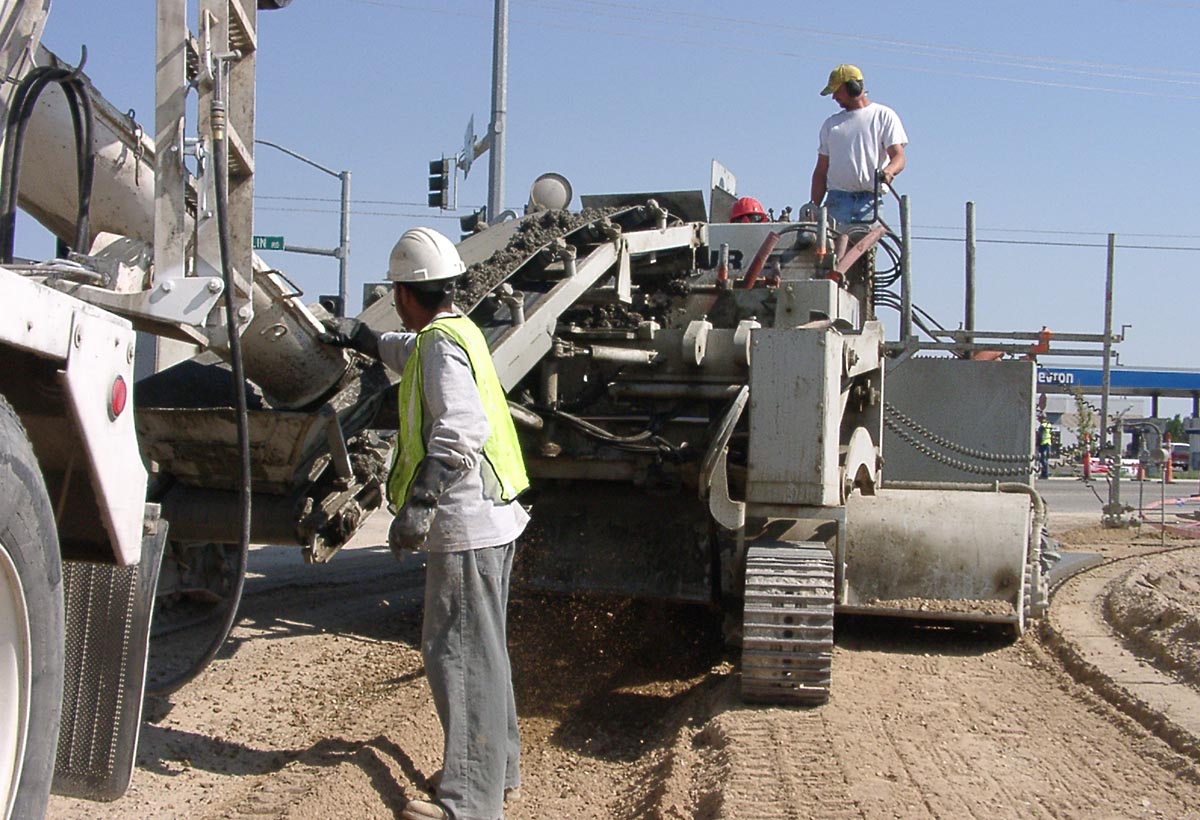

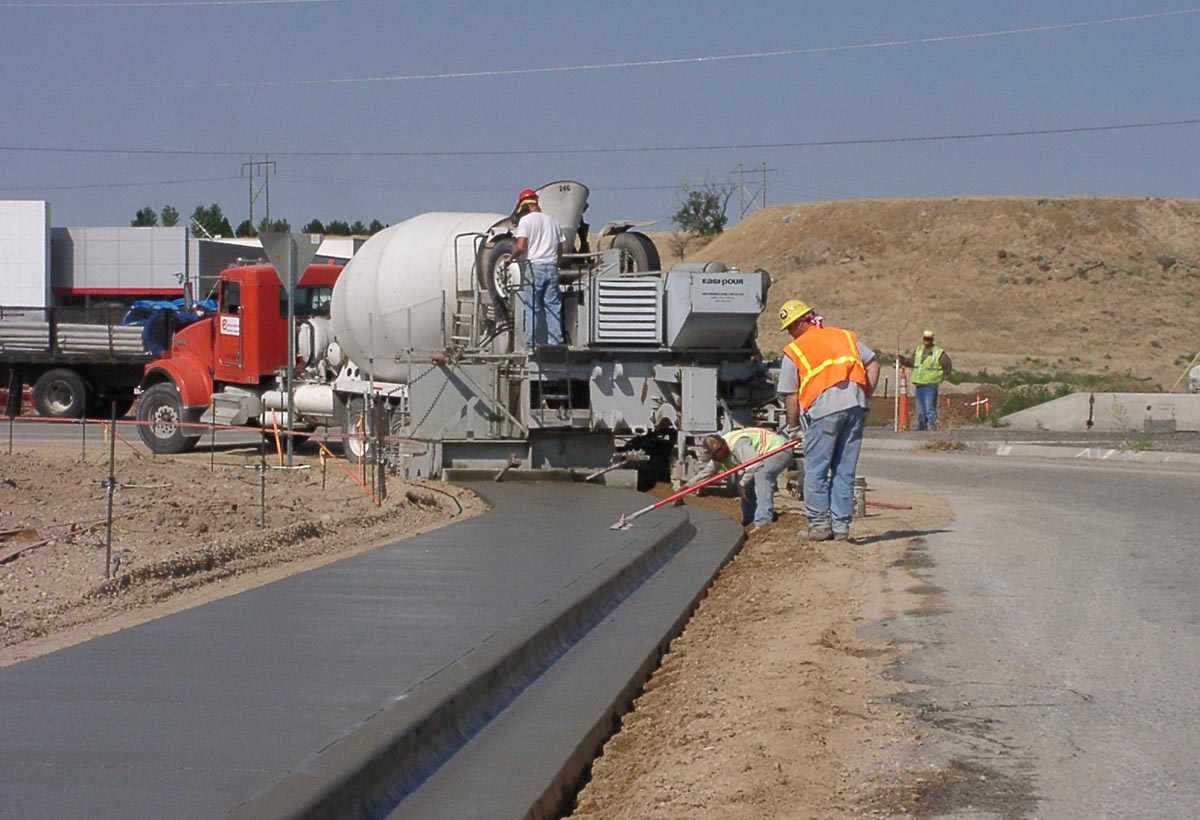

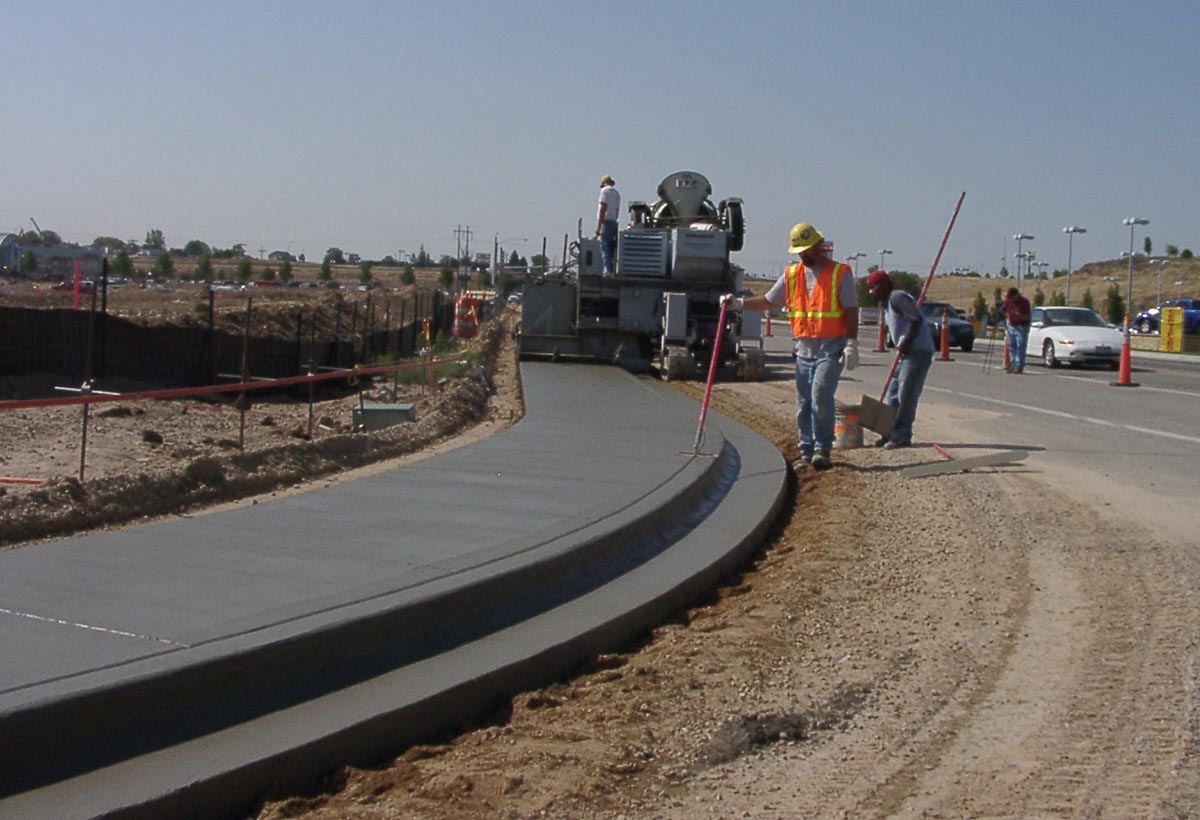

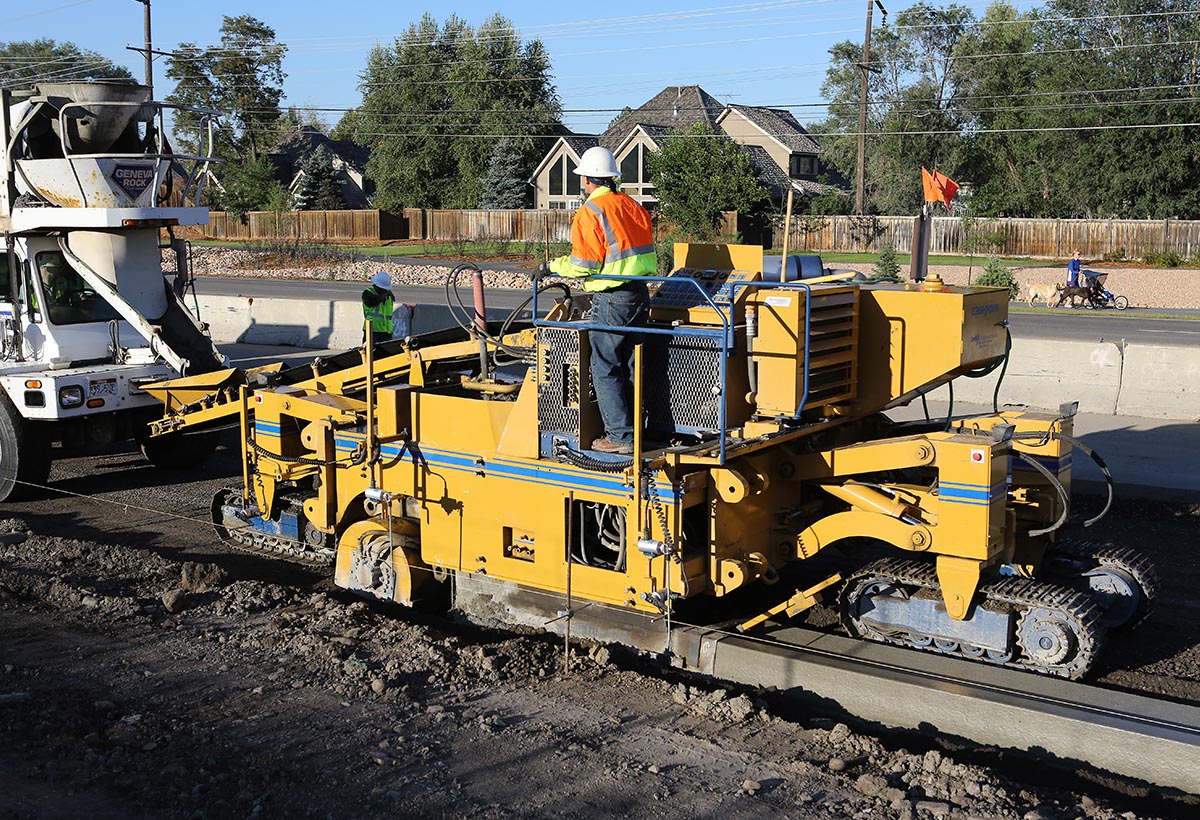

Easi Pour’s 1000 is the largest model in the Easi Pour line. The 1000 is available in a four-track configuration. Applications of the 1000 are all styles of curb & gutter, sidewalk, recreational paths, valley gutters, safety barriers and bridge parapet up to 72” (1.8 m) high and flat paving up to 10’ (3 m) wide. The 1000 can also be fitted with a monolithic trimmer for paving monolithic profiles of gutter, curb, and sidewalk in one pass. Simultaneous trimming and pouring with the 1000 makes concrete placement more efficient.
The 1000 has 4 sliding legs for a multitude of leg setup possibilities, external oil cooler for added hydraulic oil system protection, 8 vibrator circuits with independent controls for wide paving, a 14’ (4.3 m) hydraulic variable speed conveyor with swing and lift cylinders, and a 51” (1.3 m) direct drive trimmer with hydraulic side shifting and vertical lift cylinders.
The 1000 is delivered with everything you need for the job including Easi-Pour manufactured sensors, cords, steering & elevation wands, 3 vibrators, and a mold built to customer specifications to create a hassle-free buying experience. String line packages are also available upon request.
iSLIP Controls are integrated on the 1000 for increased efficiency and productivity.
Call Easi-Pour Today 1 (800) 368-8920
- 4 Leg Design Increases Safety and Stability
- Highest Transport Speed for Jobsite Mobility
- E-Stops on All 4 Legs

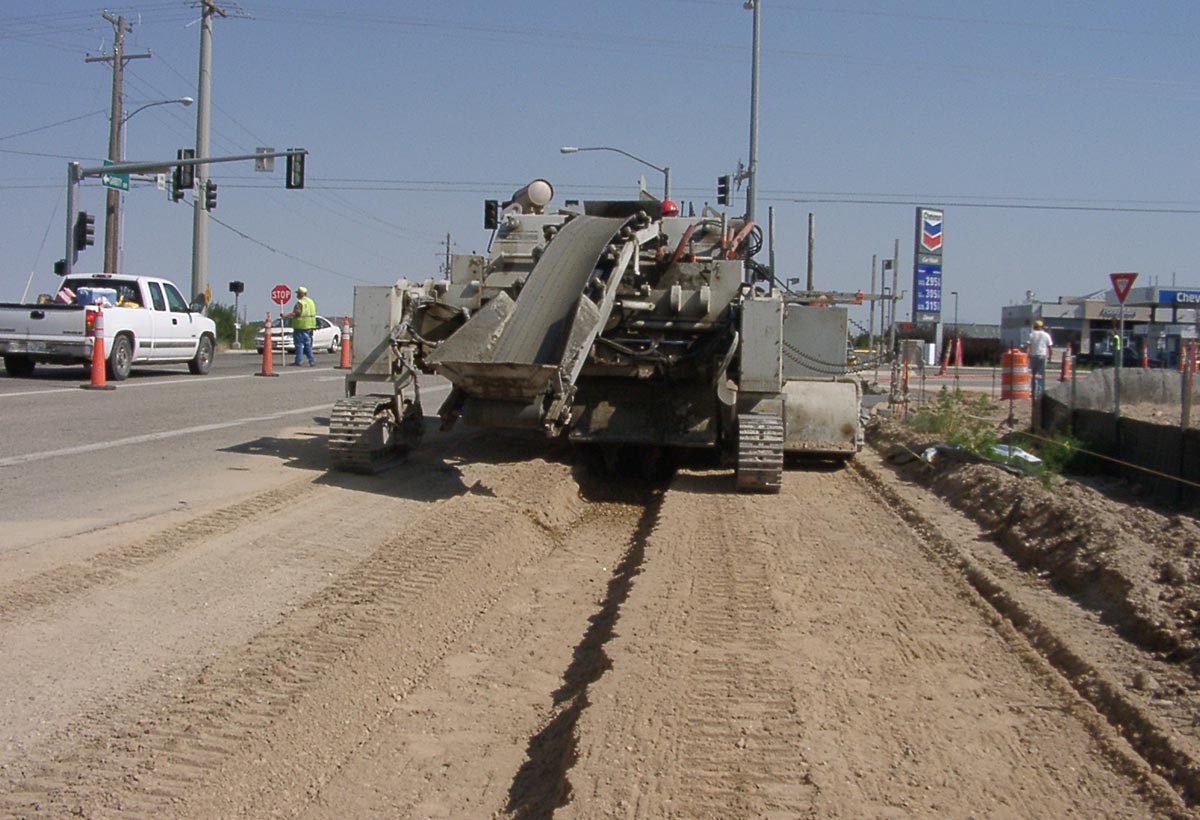

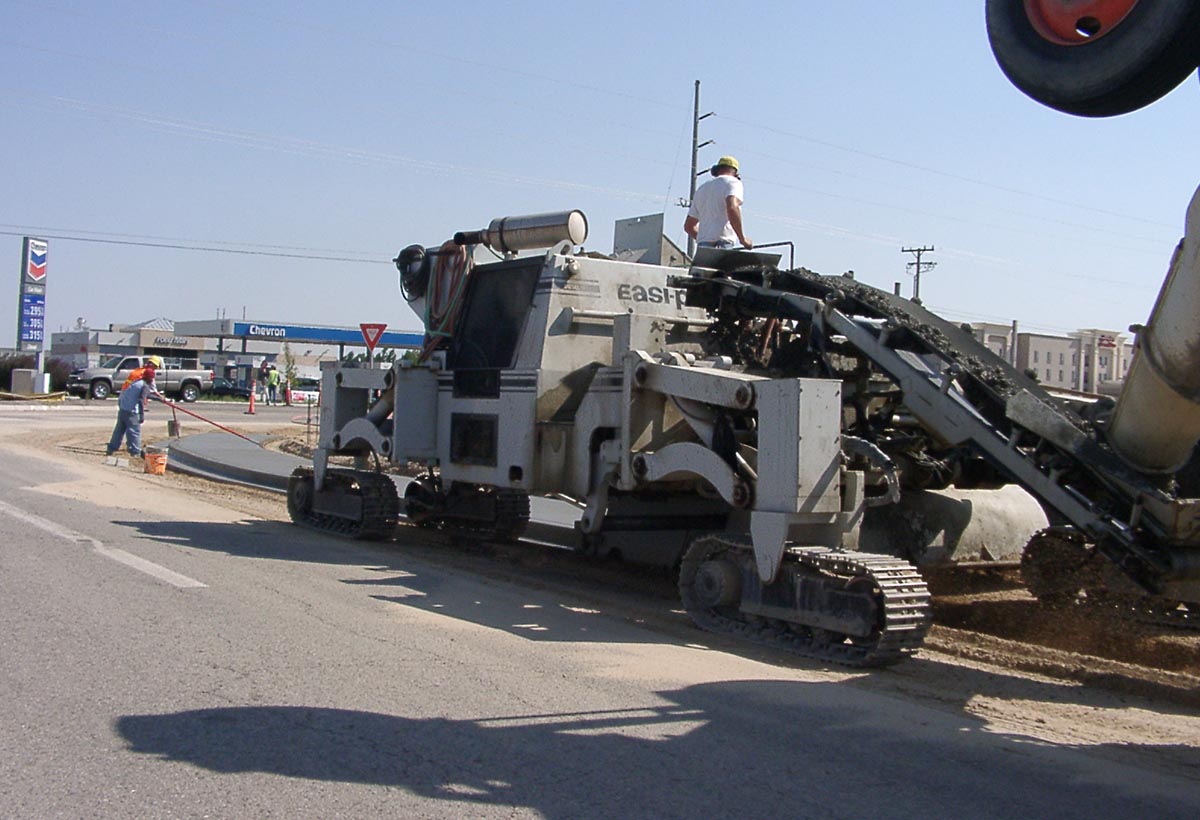

- Simultaneous Monolithic Trimming & Pouring Capabilities
- High Capacity Closeable Concrete Hopper Increases Jobsite Efficiency and Transports Concrete Between Stop and Start Points
- Ultimate Operator Visibility
- 51” (1.3 m) Standard Side Shifting Trimmer
- Hydraulically Controlled Vertical Trimmer Adjustment
- EASI Connect Mold Mount for Fastest Mold Exchange
- Transport with Mold in Place
- Simple Machine Setup Increases Jobsite Efficiency
- Standard Sliding Legs for Increased Range of Capabilities
Standard Equipment
- John Deere 185 HP 6068T 6 Cylinder Diesel Engine

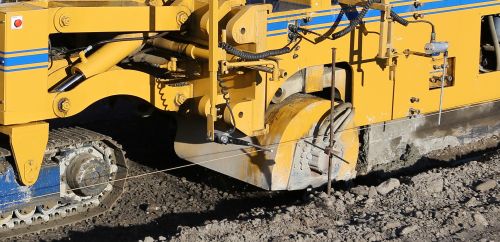

- Direct Drive Fine Grade Side Shifting 51” (1.3 m) Side by 26” (660 mm) Diameter Trimmer with Vertical Adjustment
- 4 Post Slide for Increased Range of Leg Set-Up Possibilities
- 4 Sensors and 4 Sensor Cords
- 2 Elevation Wands and 2 Steering Wands

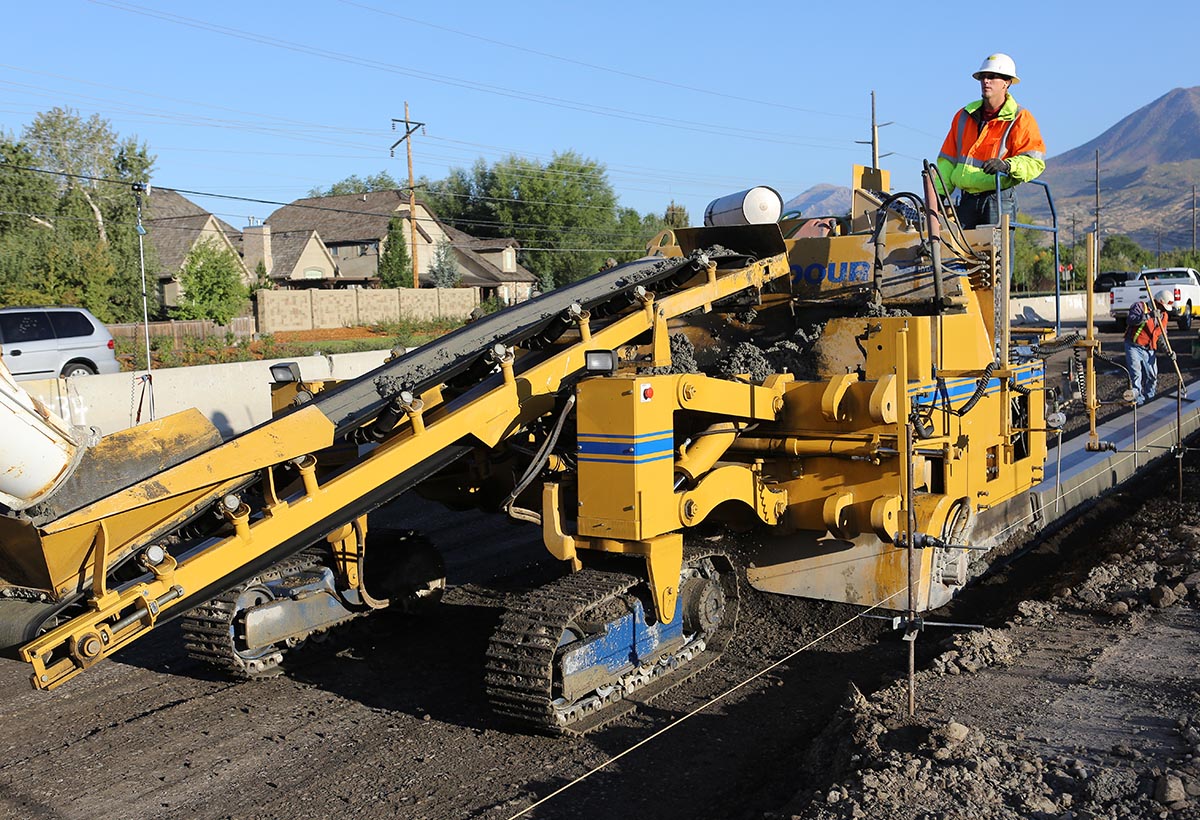

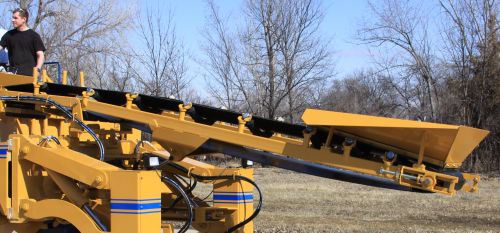

- 14' (4.3 m) Variable Speed Hydraulic Loading Conveyor with Lift and Pivot Cylinders

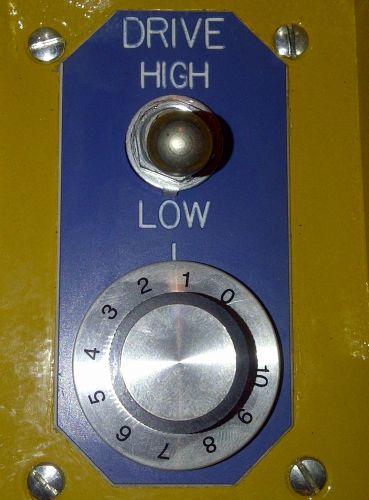

- 2 Speed Track Transport – Separate Drive Control for Ultimate Jobsite Mobility (Track Configuration Only)
- 4 Hydraulic Vibrators

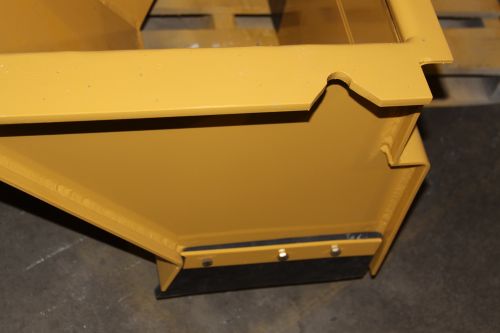

- 1 Standard Design Curb Mold

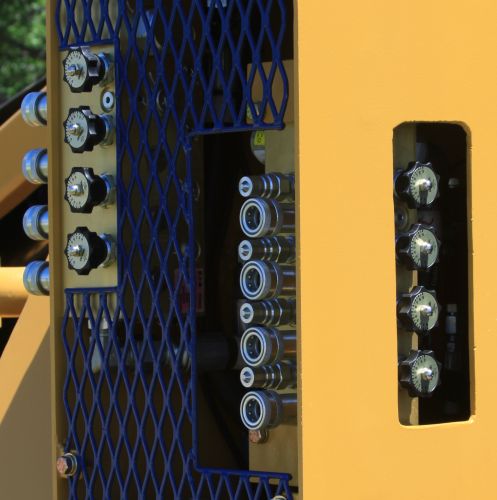

- 8 Hydraulic Vibrator Circuits and Controls
- EASI Connect Mold Mount for Fastest Mold Exchange

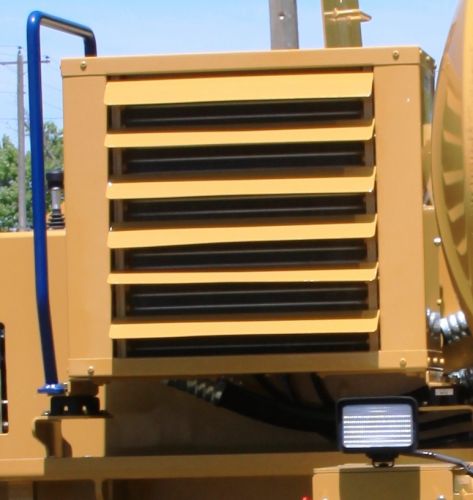

- External Oil Cooler - Provides Superior Hydraulic Component Protection Under Extreme Weather Conditions
Optional
- 4 Track or 4 Wheel Configurations
Optional Water Systems
- Air Pressurized High Volume System – Includes: Air Compressor, Tool Chuck, Hose and Wand

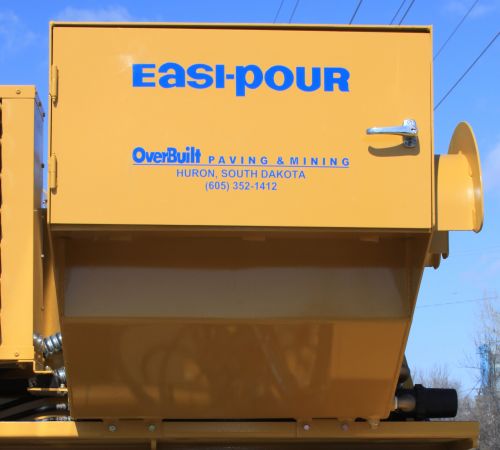

- Hydraulic Driven High Pressure System - Includes: Pressure Pump, Hose, and Wand

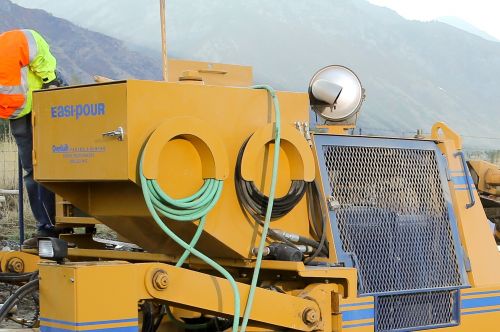

- Dual High/Low Pressure Water System (Includes: pressure pump, hose and wand for high pressure, and low pressure high volume hose)
Fine Trim Options
- Grade Trimmer Can Be Built Up To A Maximum Width of 10' (3 m)

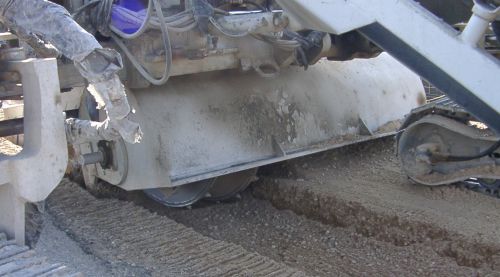

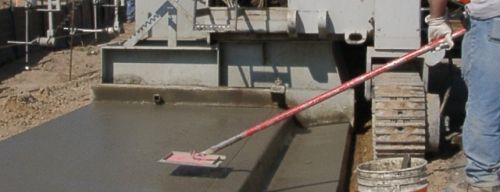

- Monolithic Trimmer with Dual Internal Direct Drive Motors - Profiled to Customer's Specifications with Variations Up To 10' (3 m)
Additional
- Air Compressor – Provides Air Port for Additional Tools On The Job Site
- Suction Screens and Return Hydraulic Filters
- Foam Filled Tires (Wheel Configuration Only)
- Track Poly Pads - Recommended for Running on Asphalt or Other Sensitive Surfaces (Track Configuration Only)
- Sliding Front Steering Cylinder – Recommended for Running 12” (305mm) or Less From String Line – Designed for Pouring Cul-de-Sac.
- Extended Conveyor Hopper

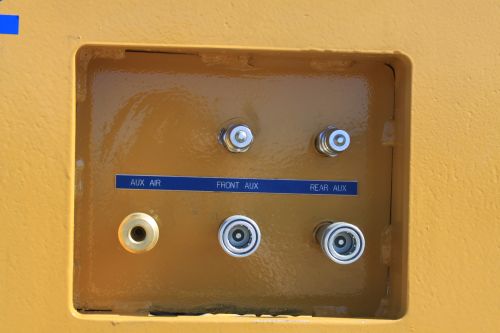

- 2 Auxiliary Hydraulic Connectors and 2 Additional Sensor Connection Points
- Sliding Hopper Pan – Hydraulically Opens and Closes Hopper
- Anti-Theft Package – Provides Strategic Lockouts and Compartment Covers to Deter Theft
- Custom Paint – Paint Your 1000 to Match the Rest of Your Equipment Fleet
Mold Options

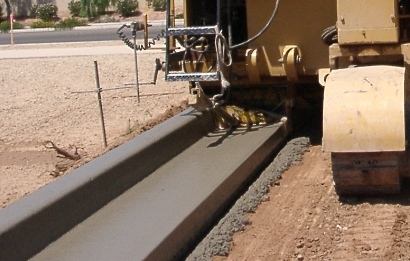

- Standard Curb and Gutter

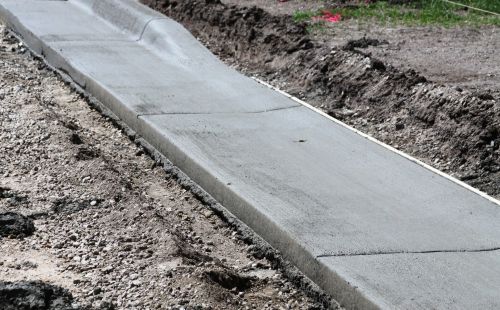

- Standard Curb and Gutter with Hydraulic Driveway Blockout

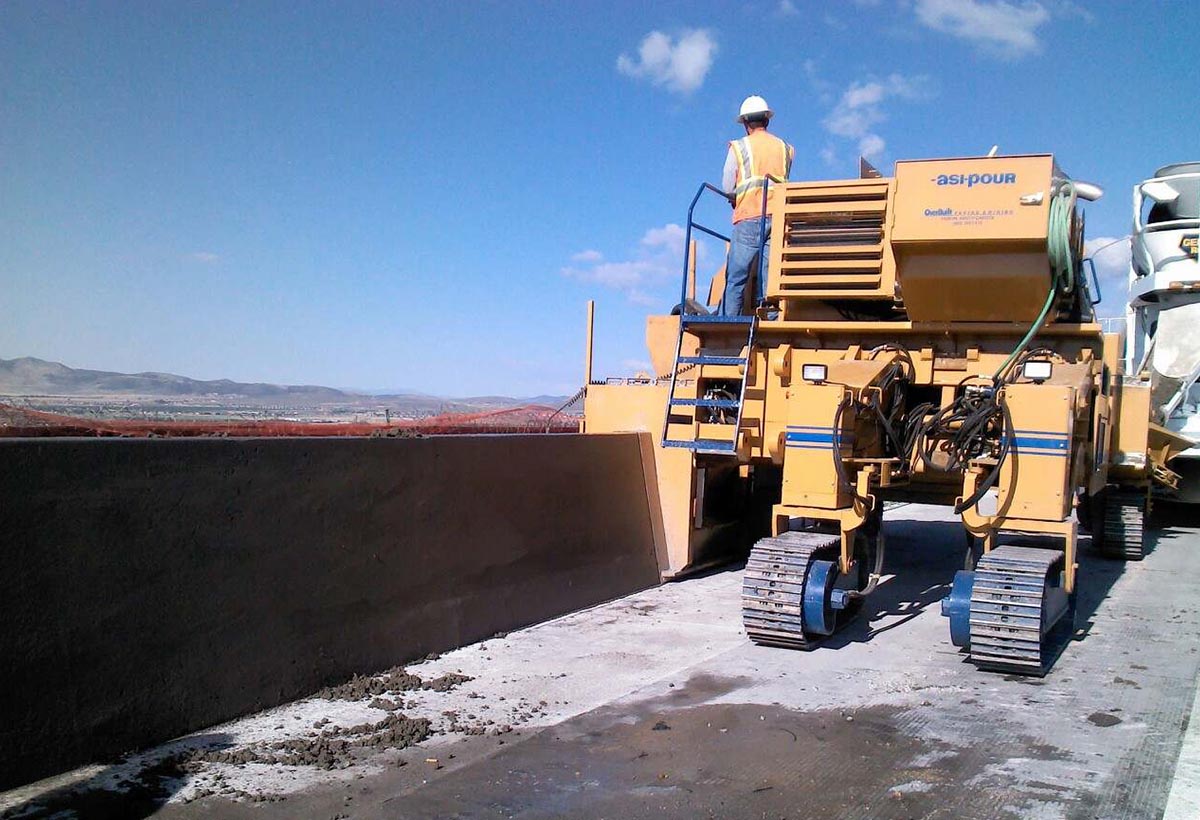

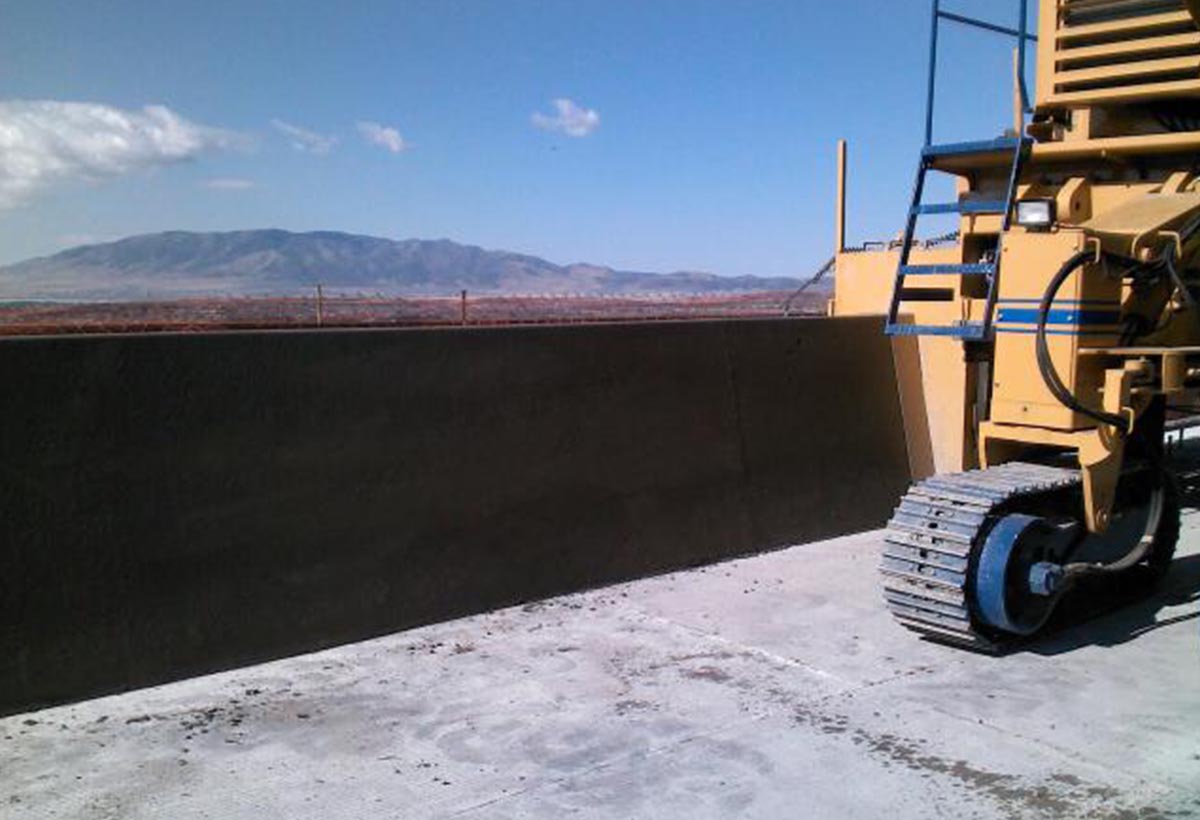

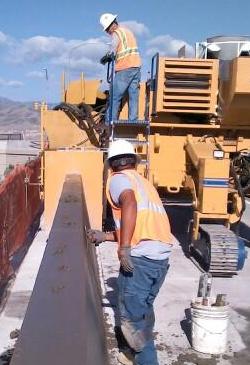

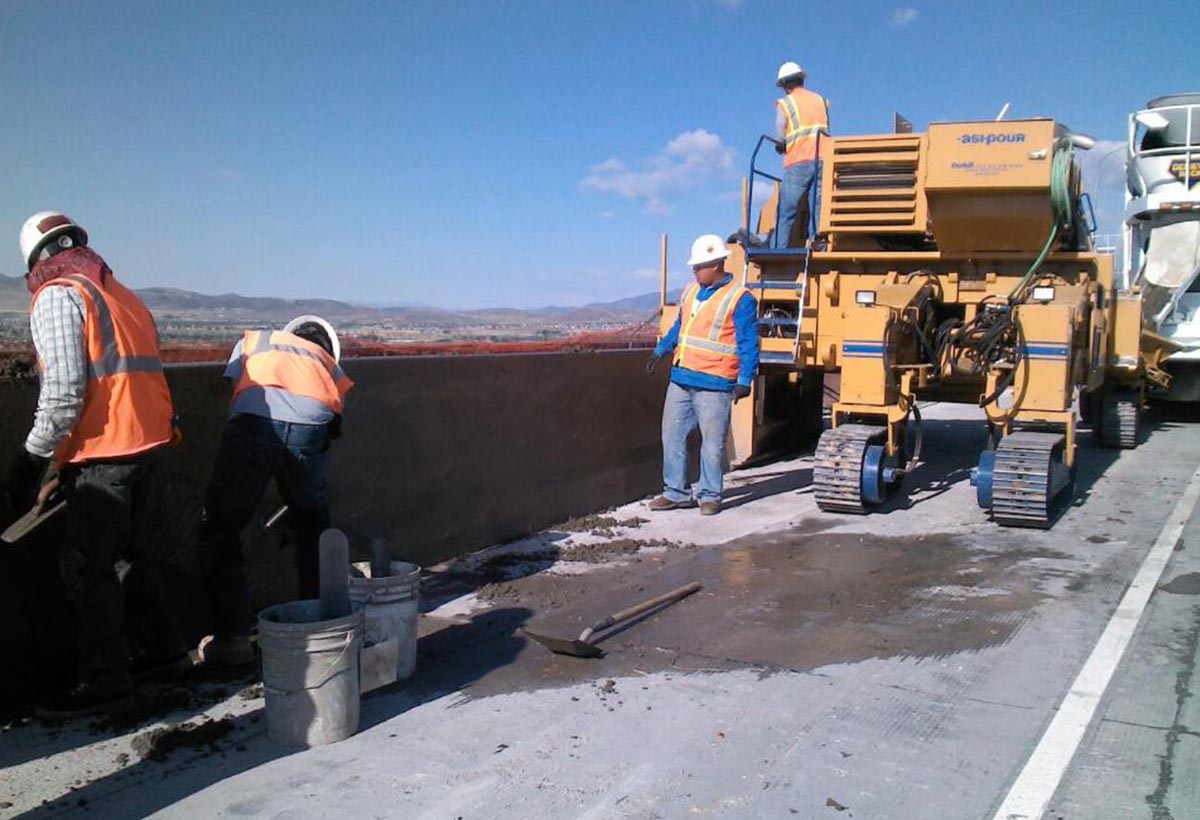

- Bridge Parapet or Highway Barrier and Barrier Walls up to 42"(1m)High
- Side Mount or Center Mount Configurations
- Sidewalk or Flat Paving Mold Options Up To 10’ (3 m) Wide (Consult Factory For Wider Paving Option)
Engine Options
- John Deere 6068HFC08 185 HP Final Tier 4
- Contact Factory for Alternative Engine Make and Model
Charge Hopper
- 1.75 Cubic Yard Capacity Hopper (1.33 Cubic Meters)
Track Size
- Tracks: Length - 61.5" (1.56m) Width - 12" (305mm)
- Contact Factory for Rubber Tire Option
Fuel & Oil Capacity
- Fuel Tank: 70 gallon (265 liters)
- Oil Reservoir: 110 gallons (416 liters)
Dimensions
- Length: 27’ 6” (8m) includes conveyor
- Height: 8’ (2.4m)
- Width: 8’ 6” (2.5m) transport width
Weight
- Track Machine: 29,500 lbs (13,380 kg)
- Tire Machine: 27,400 lbs (12,428 kg)

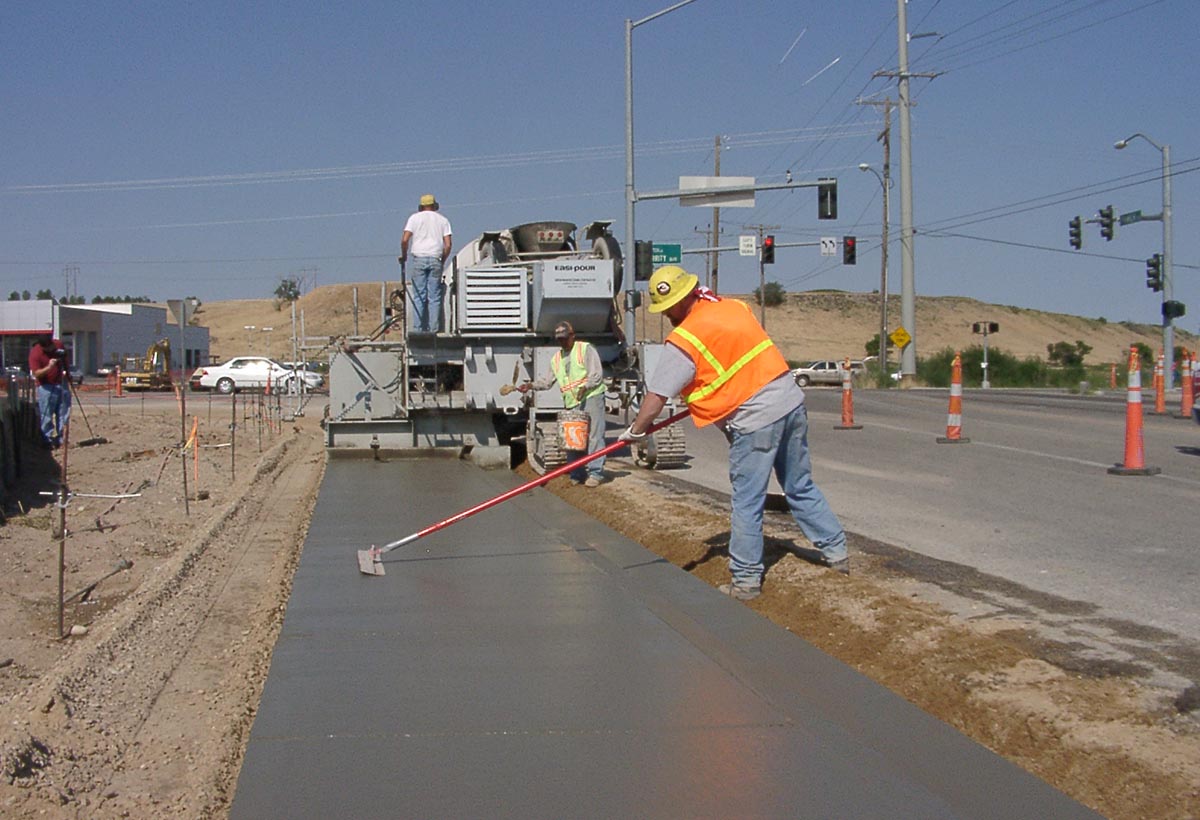

Easi-Pour 1000 Sidewalk Pour
