Easi-Pour Compact 880

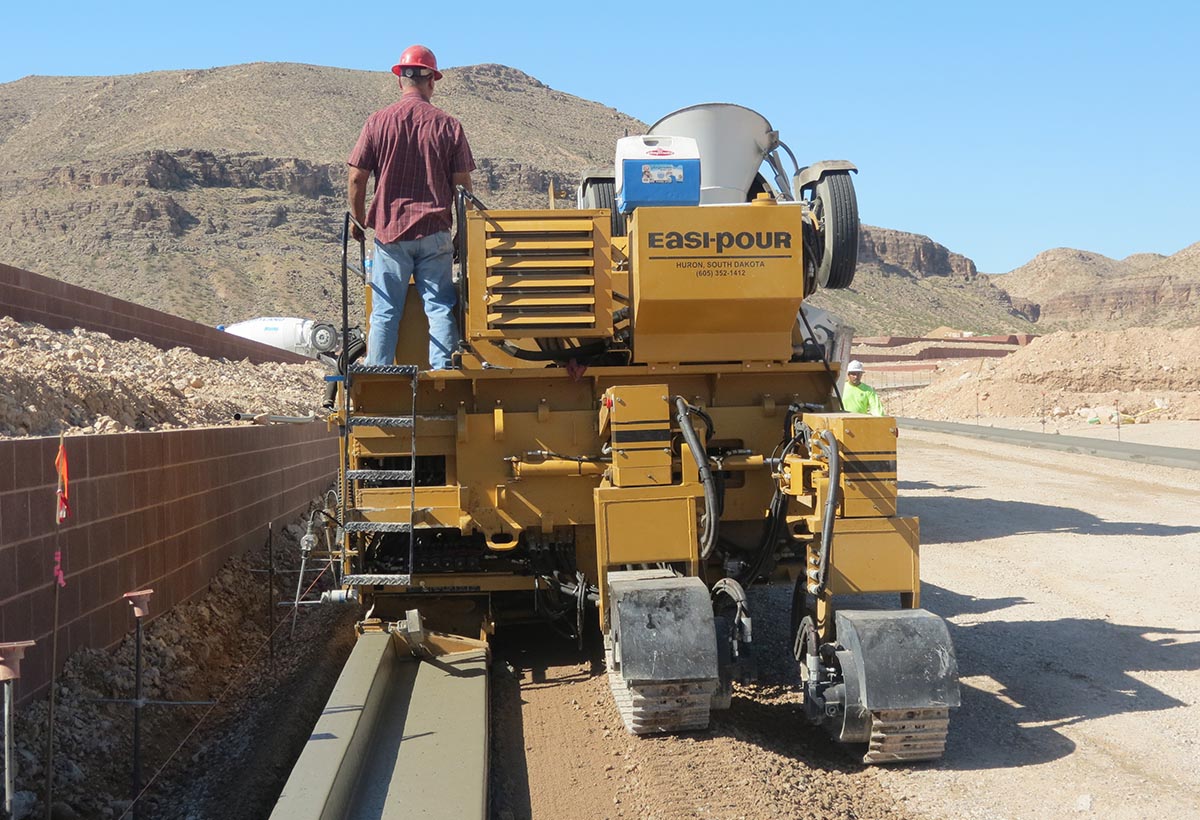

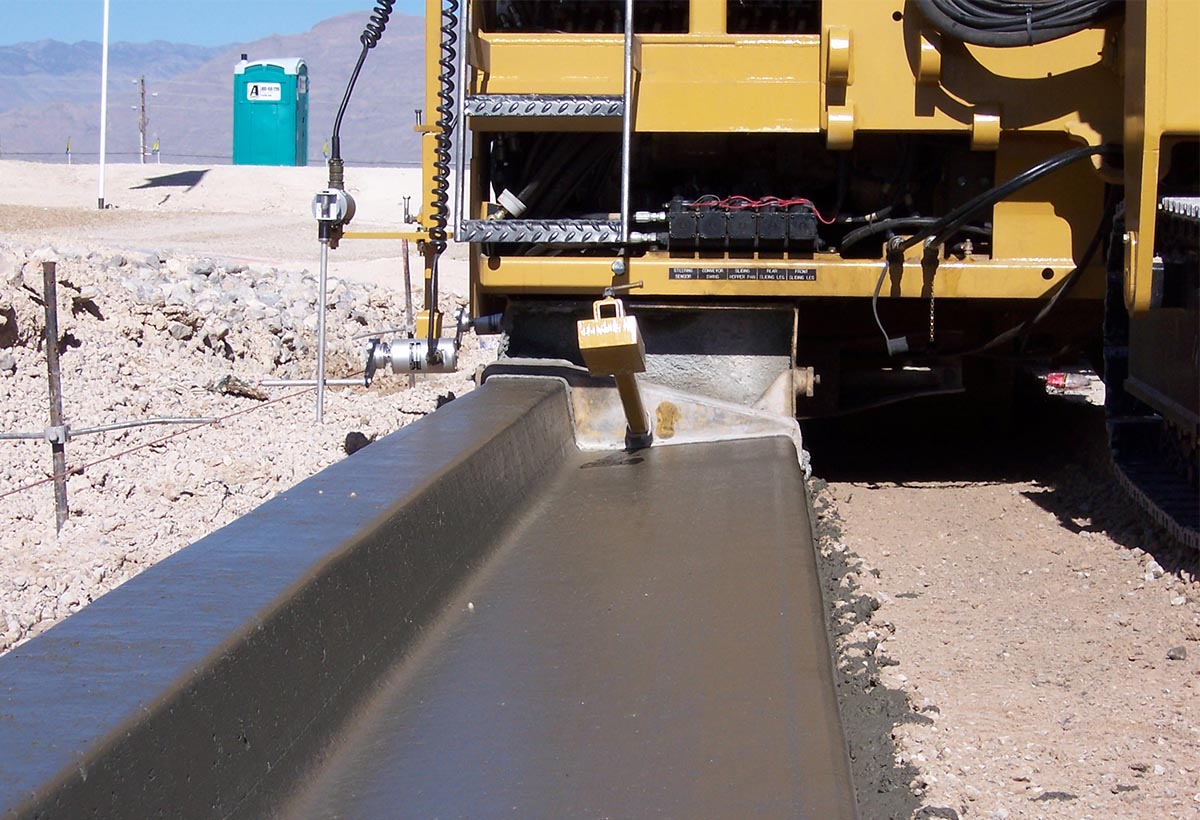

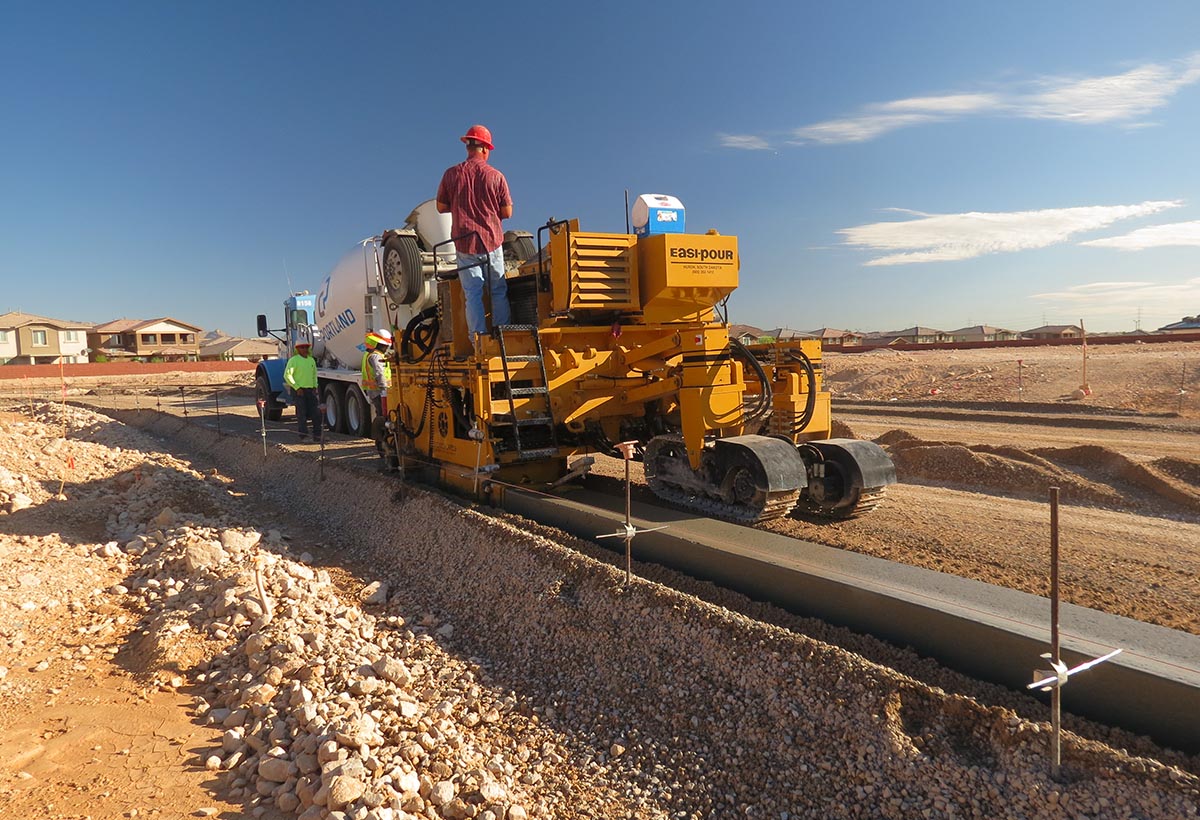

The Compact 880 is available in your choice of rubber wheel or track configurations. Applications of the Compact 880 are all curb & gutter configurations, tight radius, sidewalks, recreational paths, cul-de-sacs, 42" (1 m) high safety barriers and bridge parapet, monolithic and flat paving up to 8 feet (2.4 m) wide. Simultaneous trimming and pouring with the Compact 880 makes concrete placement more efficient.
Easi Pour's longevity continues to prove itself with machines still operating in the field today after more than 30 years. Unique to the Easi Pour is its 1.75 cubic yard (1.3 cubic meter) capacity hopper which allows for increased volume of concrete on-board and minimizes stopping between concrete trucks.
The Compact 880 is delivered with everything you need for the job including Easi-Pour manufactured sensors, cords, steering & elevation wands, 3 vibrators, and a mold built to customer specifications are all included to create a hassle-free buying experience. String line packages are also available upon request.
While we remain deeply rooted in the technologies that brought us to where we are today, we stay competitive by investing in ongoing research and development. We’re proud to introduce the iSLIP Control System, an intelligent slipform technology with remote access capability for your paving applications. Now integrated with the Compact 880 machine, iSLIP Controls create more accurate concrete placement and increase production on your job sites.
Call Easi-Pour Today 1 (800) 368-8920
Features

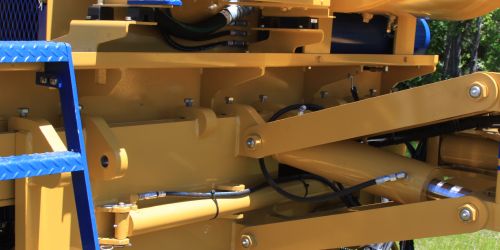

- 4 Leg Design Increases Safety and Stability
- Highest Transport Speed for Jobsite Mobility
- E-Stops on All 4 Legs
- Tight Radius to 24" (610 mm)
- Monolithic Pouring Capabilities
- Ultimate Operator Visibility
- 51" (1.3 m) Standard Side Shifting Trimmer
- Vertical Trimmer Adjustment
- EASI Connect Mold Mount for Fastest Mold Exchange
- Transport with Mold in Place
- Simple Machine Setup Increases Jobsite Efficiency
- iSLIP Control System
Options
Standard Equipment
- Cummins QSB 4.5 FT4 or John Deere 4045 FT4 Diesel Engines
- Cummins 130HP or John Deere 134HP
- 4 Sensors and 4 Sensor Cords

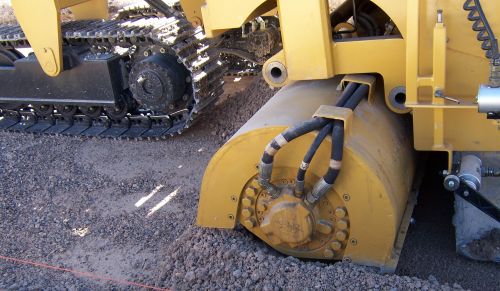

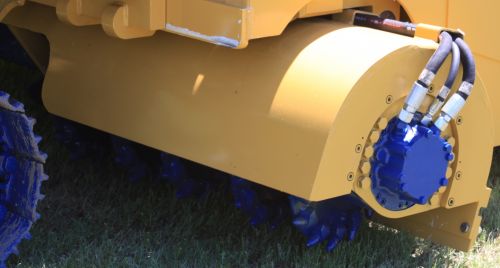

- Fine Grade Side Shifting 51” (1.3m) Trimmer with Vertical Adjustment

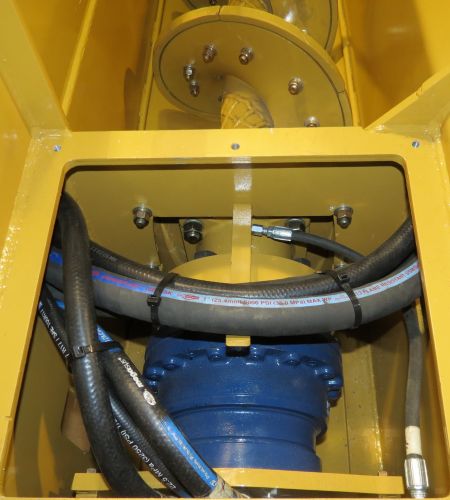

- Direct Drive Hopper Auger - Internal Drive Motor Supplies Direct Power to Auger
- 12’ (3.6 m) Variable Speed Hydraulic Loading Conveyor with Lift and Pivot Cylinders (14’ Conveyor Option)
Optional
- 2 Speed Track Transport – Separate Drive Control for Ultimate Jobsite Mobility (Track Configuration Only)

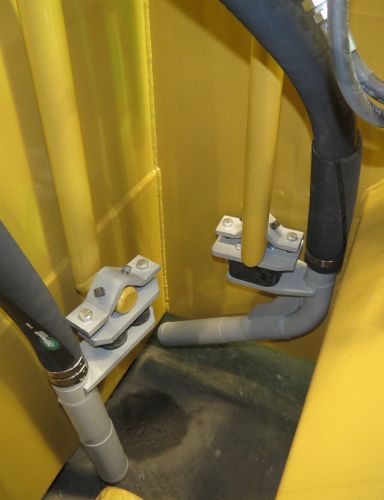

- 3 Hydraulic Vibrators
- Customer Design Curb Mold
- 4 Hydraulic Vibrator Circuits and Controls

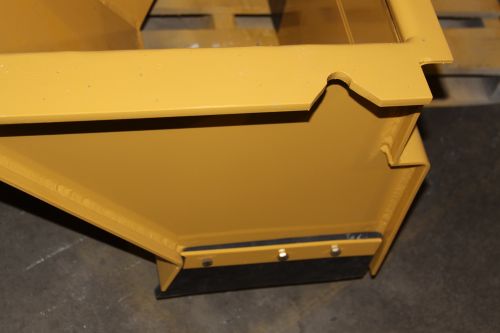

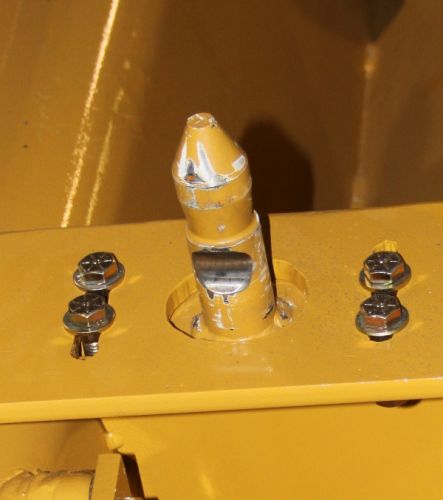

- EASI-CONNECT Curb Form Quick Attach System
Optional Water Systems

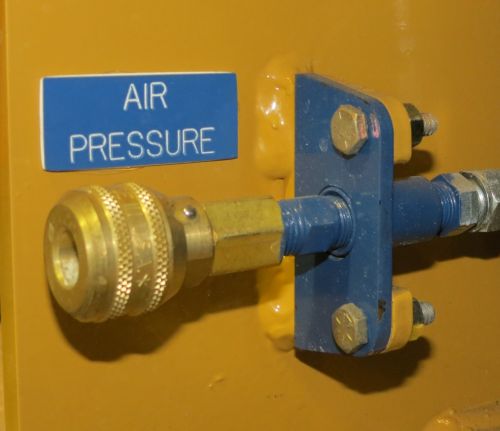

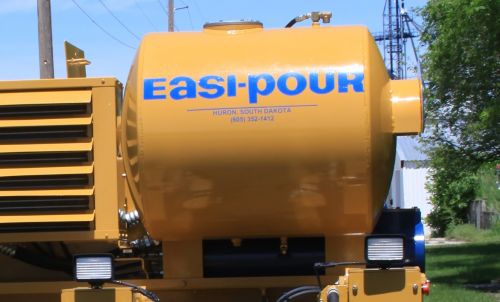

- Air Pressurized High Volume System (Includes Air Compressor and Tool Chuck)
- Hydraulic Driven High Pressure System (Includes: pressure pump, hose and wand.)
- Dual High/Low Pressure Water System (Includes: pressure pump, hose and wand for high pressure, and low pressure high volume hose)
Additional
- Suction Screens and Return Hydraulic Filter
- #8 Wheel Drives – Provide More Power and Greater Weight Bearing (Wheel Configuration Only)
- Foam Filled Tires
- Track Poly Pads – Recommended for Running on Asphalt or Other Sensitive Surfaces (Track Configuration Only)
- Sliding Hopper Pan – Hydraulically Opens and Closes Hopper

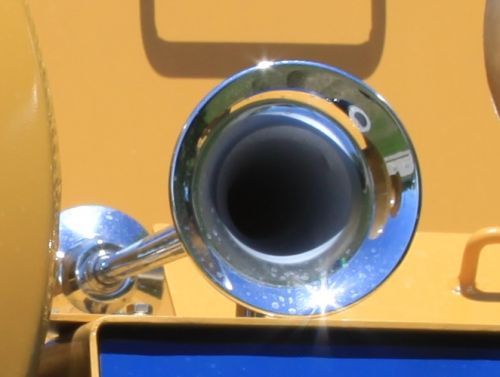

- Air Horn – Requires Air Compressor
- Air Compressor

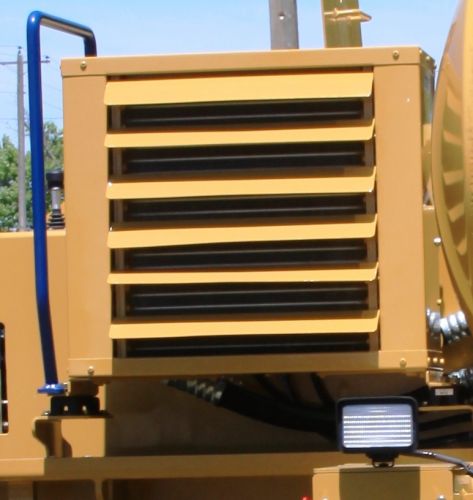

- External Oil Cooler – Provides Superior Hydraulic Component Protection Under Extreme Weather Conditions

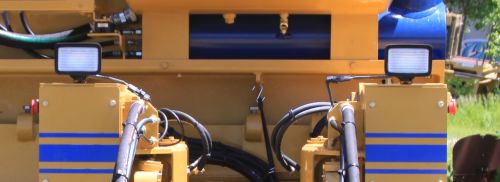

- Light Kit - Includes: 5 - LED Lights (1 Magnetic for Operators Platform)

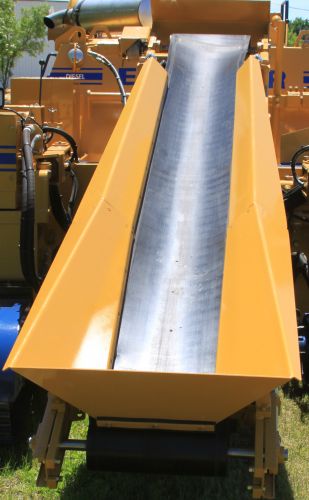

- Extended Conveyor Hopper

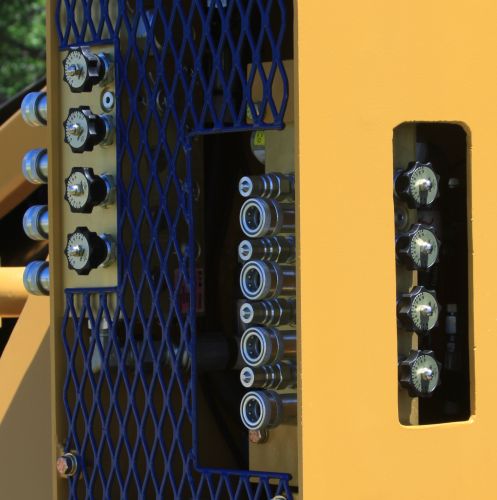

- 4 Additional Hydraulic Vibrator Circuits and Controls - Provides a Total of 8 Circuits for Wider Paving

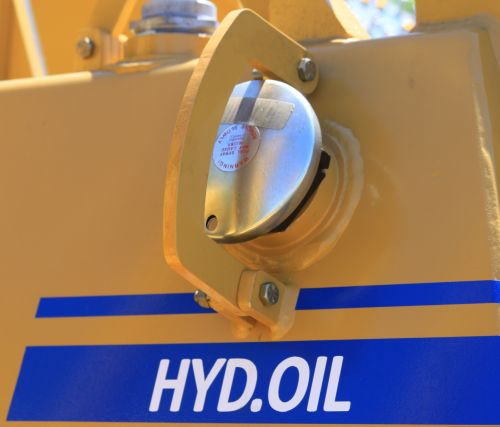

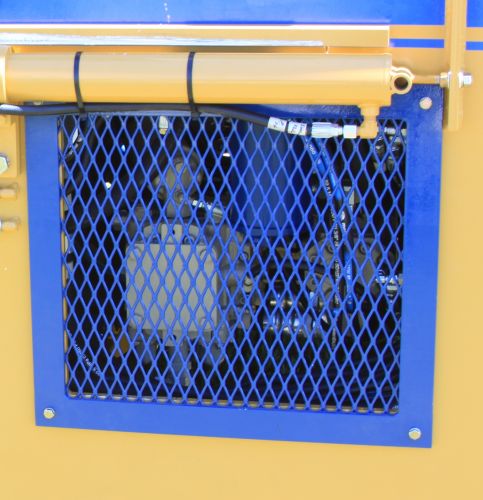

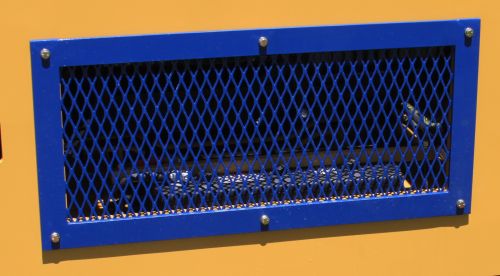

- Anti-Theft Package Provides Strategic Lockouts and Compartment Covers to Deter Theft

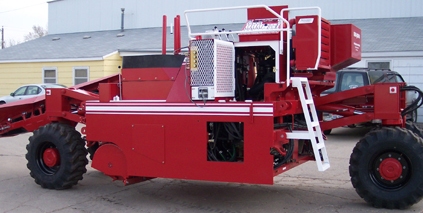

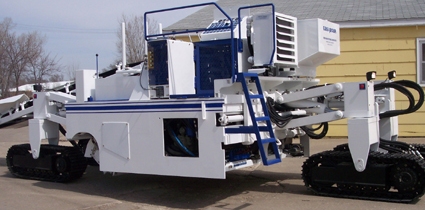

- Custom Paint your Compact 880 to Match the Rest of Your Equipment Fleet

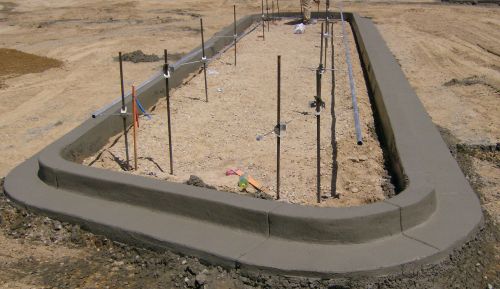

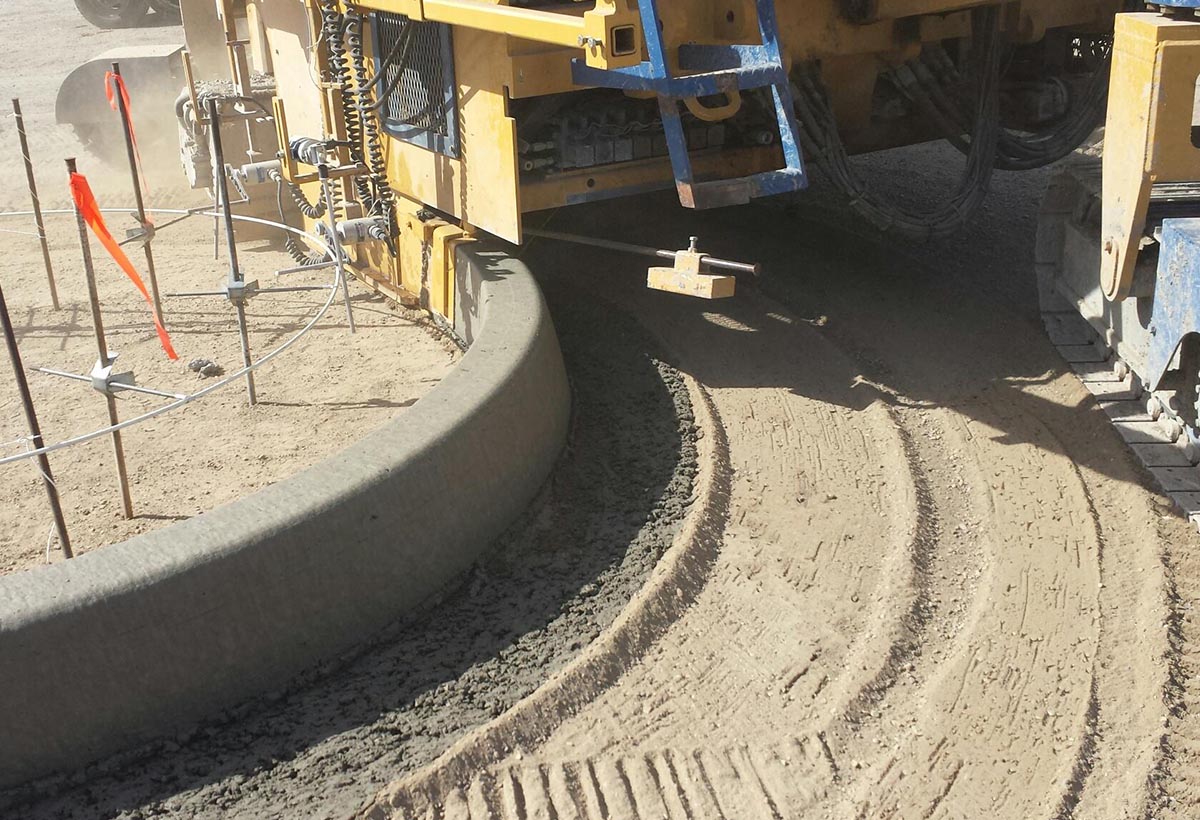

Tight Radius Package

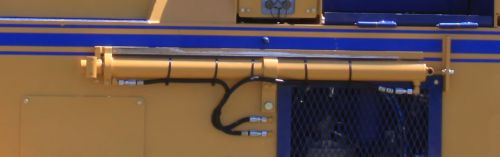

The Tight Radius Package incorporates steering actuators that allow track/wheel movement of 180 degrees front and 100 degrees rear for pouring tight radii.
Package includes: Hydraulic sensor slide system and 14' (4.3 m) conveyor. Tight radius package is capable of 24" (610 mm) radius.
Mold Options

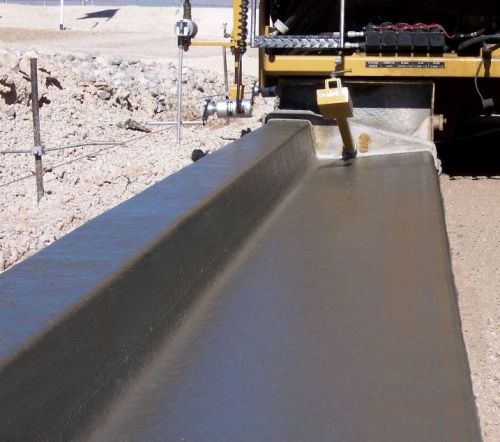

- Standard Curb and Gutter
- Standard Curb and Gutter with Hydraulic Driveway Blockout
- Tight Radius Curb and Gutter or Ribbon Molds

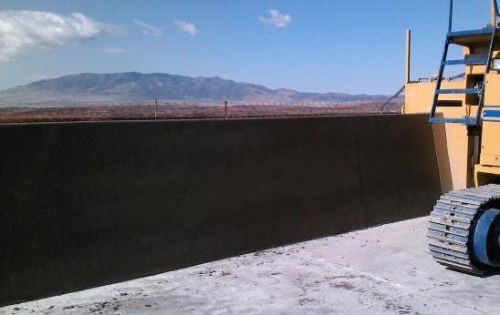

- Bridge Parapet or Highway Barrier and Barrier Walls up to 42"(1m)High

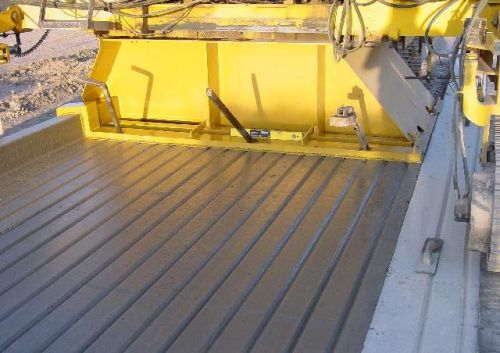

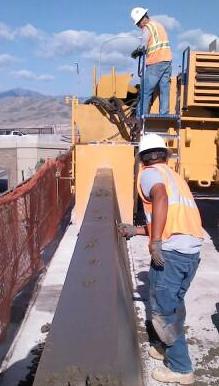

- Side Mount or Center Mount Configurations

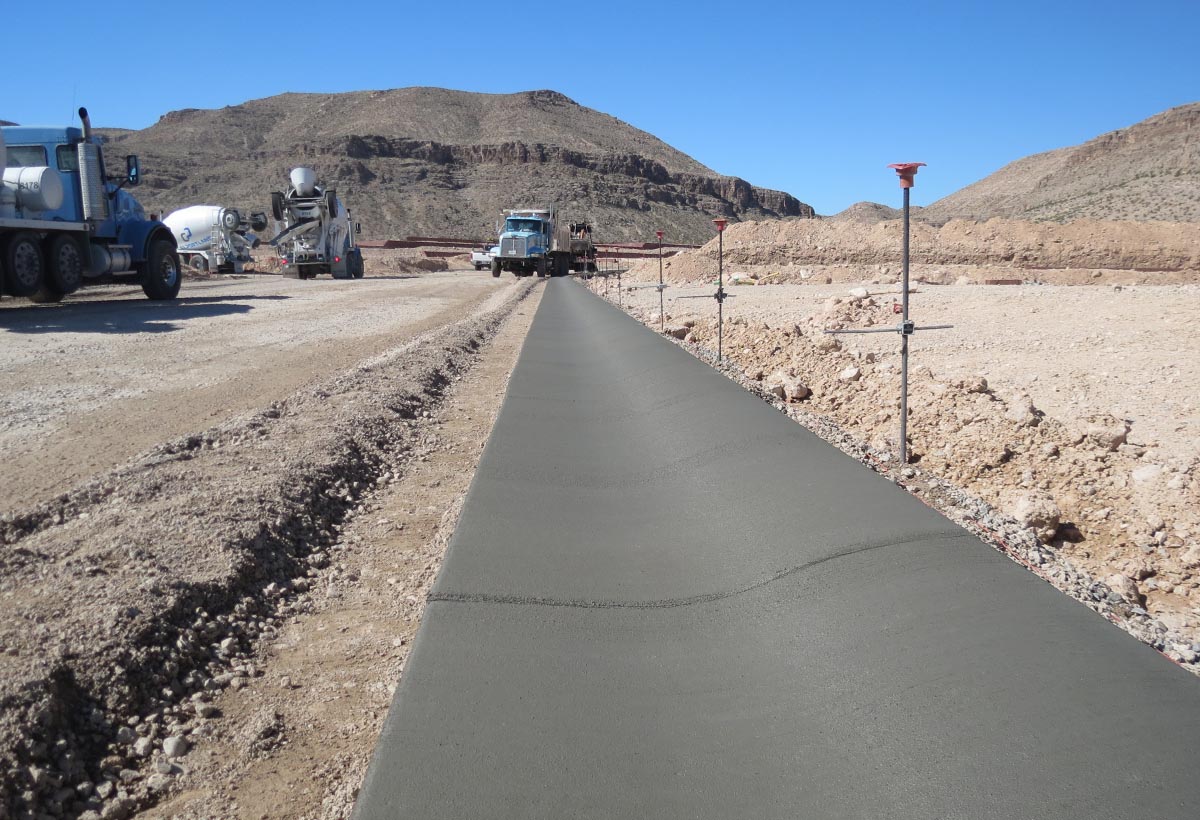

- Sidewalk or Flat Paving Mold Options up to 8' (2.4 m) Wide
Specifications
Engine Options
- Cummins QSB4.5 130 HP Tier III
- Cummins QSB4.5 T4F 130 HP Final Tier 4
- John Deere 4045T 140 HP Tier III
- John Deere 4045HFC04 134 HP Final Tier 4
Charge Hopper
- 1.75 Cubic Yard Capacity Hopper (1.33 Cubic Meters)
Track & Wheel Size
- Tracks: Length - 61.5" (1.56m) Width - 12" (305mm)
- Wheels: 15 x 19.5 12 ply tubeless
Fuel & Oil Capacity
- Fuel Tank: 70 gallon (265 liters)
- Oil Reservoir: 70 gallon (265 liters)
Dimensions
- Length: 23' 6" (7.12m) includes conveyor
- Height: 6' 8"
- Width: 8' 2” (2.4m) transport width
Weight
- Track Machine: 24,000 lbs (10,886 kg)
- Tire machine: 21,900 lbs (9,933 kg)
