Easi-Pour 650B
Easi Pour’s 650B is the most versatile machine of its size on the market today. The 650B is capable of all curb and gutter configurations, sidewalks and recreational paths to 4’ (1.2 m) wide, and radii to 24” (610 mm). The 650B is designed with ergonomics, transportability, safety, and simplicity in mind. The 650B has a removable trimmer which is mounted in place of the mold. This allows the 650B to focus on two of the most important parts of the job at separate times, establishing perfect grade and perfect concrete every time.
The Easi Pour 650B is the ONLY machine in its class of mid-size machines. With the on-board high pressure water system, 4 circuit hydraulic vibrator control, 30 gallon fuel capacity, 60 gallon hydraulic oil capacity and 4 sliding legs are several items that make the 650B the most versatile machine on the market.
The Easi Pour 650B is designed to give you everything you need in a curb & gutter machine and remain the most affordable machine in the industry. The 650B is delivered with everything you need for the job including Easi-Pour manufactured sensors, cords, steering & elevation wands, 3 vibrators, and a mold built to customer specifications to create a hassle free buying experience. String line packages are also available upon request.
Call Easi-Pour Today 1 (800) 368-8920
- 4-Wheel Variable Positive Traction Drive
- 4-Post Sliding Legs for Ultimate Flexibility
- All Wheel Steering
- Best Operator Visibility in the Industry

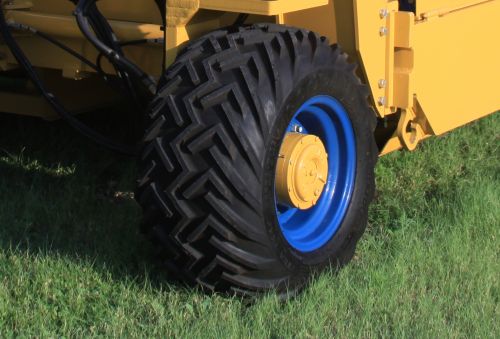

- Foam Filled Tires add Stability and Eliminate Downtime

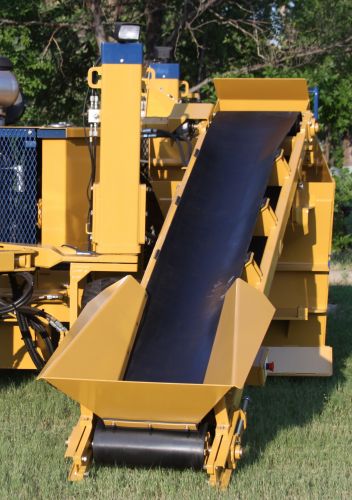

- Variable Speed Loading Conveyor Keeps Safe Distance Between Concrete Truck, Laborers, and Machine

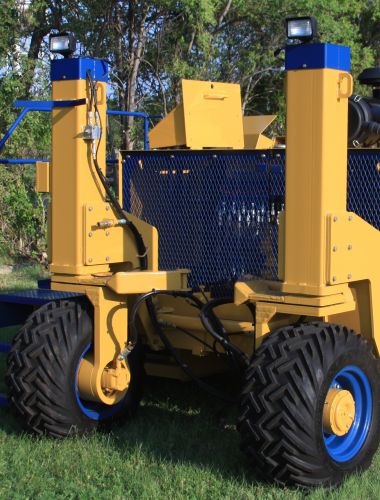

- Light Kit Increases Productivity for Pouring at Dusk or Dawn

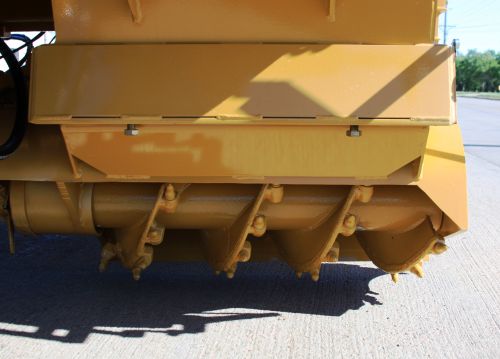

- 38” (965 mm) Wide Removable Trimmer
- Simple Machine Setup Increase Jobsite Efficiency
- Tight Radii to 24”(610 mm)
- 4 Leg Design Increases Stability and Safety
- E-Stops in 4 Locations Around Machine
- Transport with Mold in Place
Standard Equipment
- John Deere 80Hp 4045D FT4 Diesel Engine
- Water Cooled
- 3 Hydraulic Vibrators

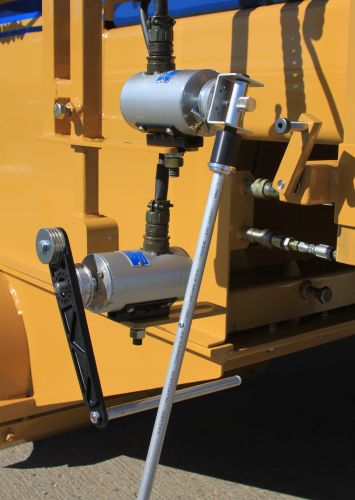

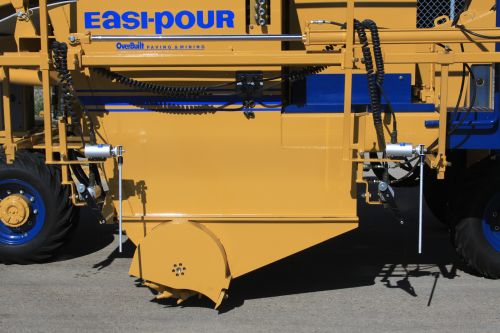

- 4 Sensors and 4 Sensor Cords
- 2 Elevation Wands and 2 Steering Wands
- Variable Speed Hydraulic Loading Conveyor with Lift Cylinder

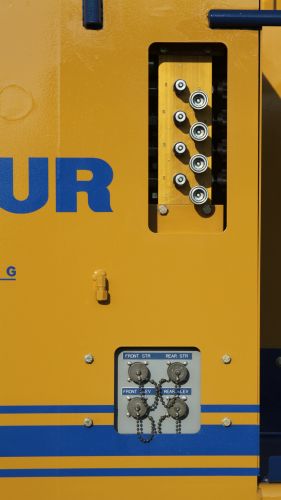

- 4 Hydraulic Vibrator Circuits and Controls

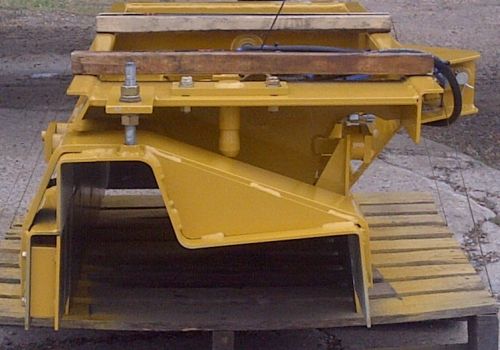

- 1 Customer Design Curb Mold
Optional
- 4 Post Slide - Increase Your Range of Set Up Possibilities
Optional Water Systems
- Hydraulic Driven High Pressure Water System – Includes: Pressure Pump, Hose, and Wand
Additional
- 38" (965 mm) Fine Grade Removable Trimmer
- Foam Filled Tires
- Light Kit

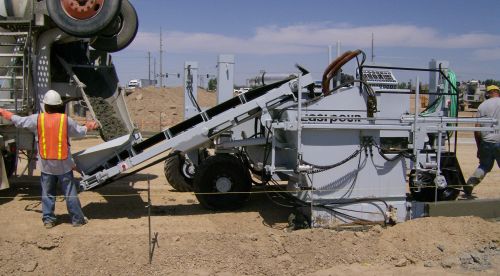

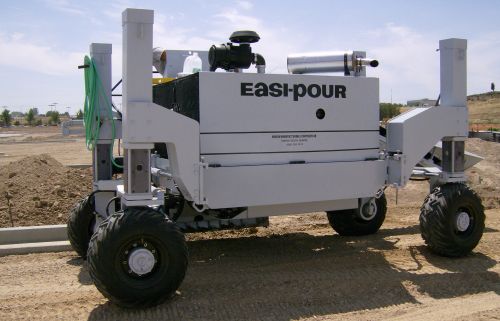

- Custom Paint - Paint Your 650B to Match the Rest of Your Equipment Fleet
- Anti-Theft Package – Provides Strategic Lockouts and Compartment Covers to Deter Theft
Engine Options
- John Deere 4045D 80 HP
- Final Tier 4 Available Upon Request
Wheel Size & Drive
- Tires: 31 x 15.5 x 15 - 8 ply foam filled
- Drive: 4 wheel positive traction
Fuel & Oil Capacity
- Fuel: 30 gallons (113 liters)
- Oil Reservoir: 60 gallons (227 liters)
Dimensions
- Length: 18’ (5.5m) includes conveyor
- Height: 7’ (2.1m)
- Width: 8’ 4” (2.5m) transport width
Weight
- 13,500 lbs (6,123 kg)

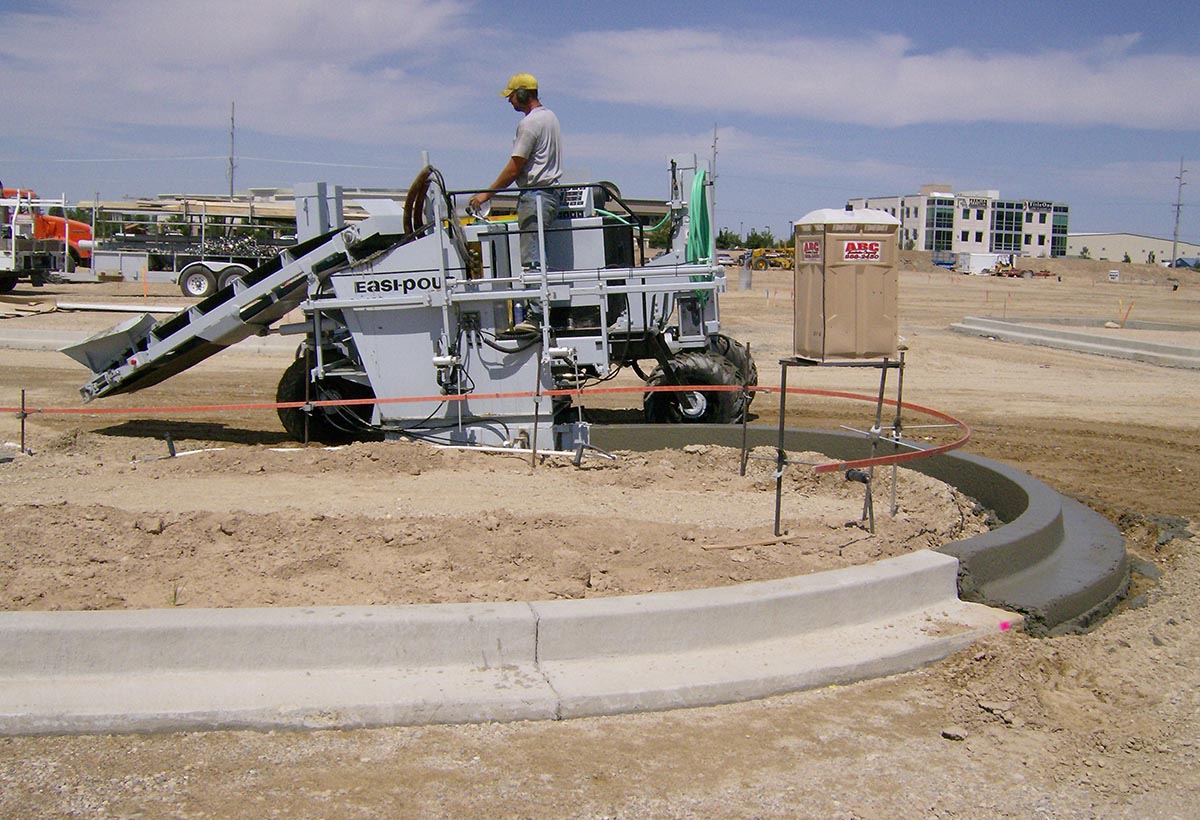

650B Pouring Radius

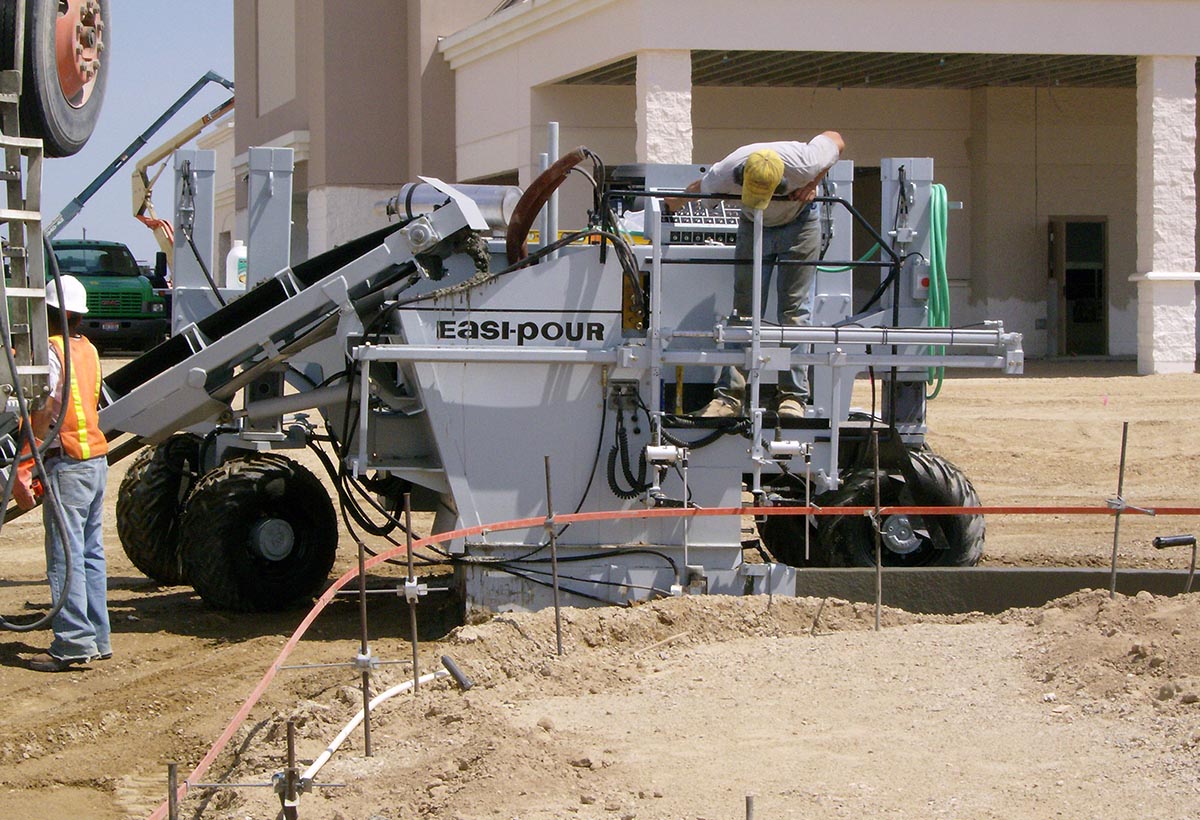

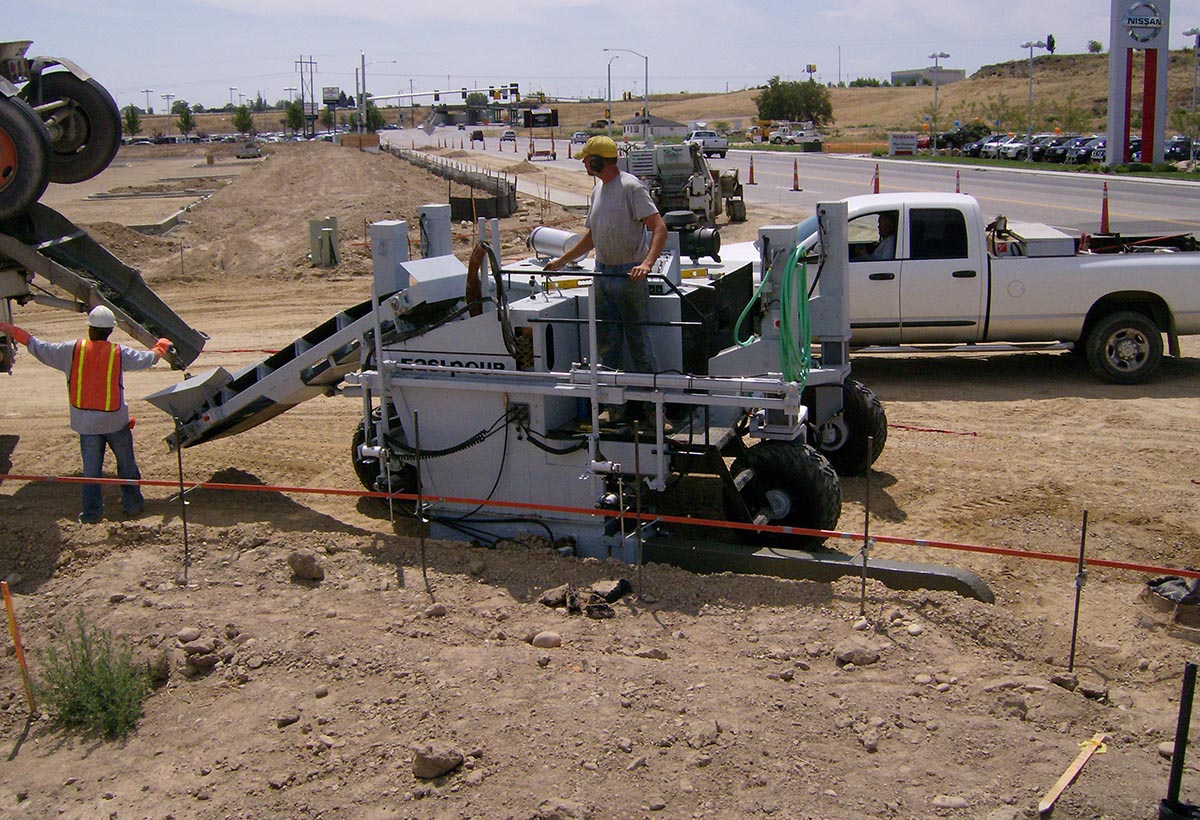

650B Pouring
650B Sliding Legs
